Prepainted Aluminum Coil Factory

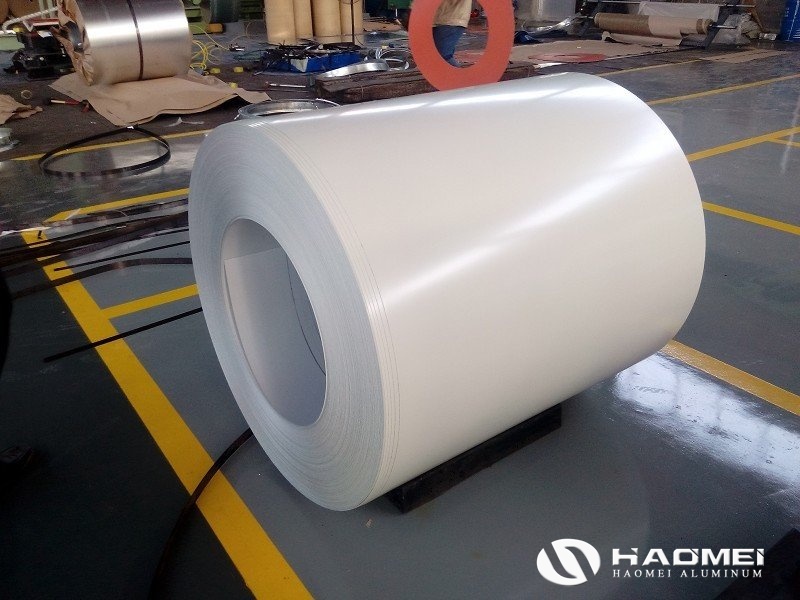

A reliable prepainted aluminum coil factory is more than a coating line with ovens and rewinders. It is a controlled manufacturing system where aluminum alloy selection, pretreatment chemistry, paint performance, curing temperature, surface inspection, and export packaging all affect the final service life. From daily production experience, I have learned that a good coil does not only look smooth at delivery; it must stay stable during slitting, profiling, bending, lamination, installation, and years of outdoor exposure.

How a Professional Prepainted Aluminum Coil Factory Works

The typical process starts with aluminum coil inspection, followed by degreasing, cleaning, chemical pretreatment, primer coating, baking, finish coating, curing, cooling, leveling, recoiling, and packaging. Each step must be matched. If degreasing is weak, paint adhesion becomes unstable. If oven temperature is not balanced, the surface may pass visual inspection but fail T-bend or solvent resistance tests later.

Modern factories use continuous coil coating lines because they provide better color consistency and higher productivity than post-painting fabricated parts. Online thickness gauges, temperature monitoring, and surface inspection help maintain stable quality across long coils. For export orders, traceability is also important. Coil number, alloy, temper, coating type, color, gloss, film thickness, and test results should be recorded clearly before shipment.

For customers comparing painted aluminum coil options, factory control capability is often more important than a low price. A small difference in coating thickness, pretreatment quality, or packing method can create significant differences after transportation and installation.

Main Specifications of Prepainted Aluminum Coil

Common alloys include 1050, 1060, 1100, 3003, 3004, 3105, 5005, and 5052. For building decoration and roofing, 3003 and 3105 are widely used because they offer good formability, corrosion resistance, and cost balance. For applications requiring higher strength or marine resistance, 5005 and 5052 may be selected.

Typical thickness ranges from 0.20 mm to 3.00 mm, while common widths are 30 mm to 1600 mm depending on coating line capacity and slitting requirements. Coil inner diameters are usually 405 mm, 505 mm, or 508 mm. Tempers often include H14, H16, H24, H26, and H32. The right temper depends on whether the material will be roll formed, stamped, folded, or used as a flat decorative panel.

Coating systems are another key specification. PE polyester coating is economical and suitable for interior ceilings, signage, and general decoration. HDP and SMP coatings improve weather resistance. PVDF coating, usually based on 70 percent Kynar 500 or Hylar 5000 resin, is preferred for high-end curtain walls, roofing, facades, and long-term outdoor projects. FEVE coating provides excellent gloss retention and color stability for premium architectural surfaces.

Usual paint film thickness is 15 to 35 microns on the top side and 5 to 15 microns on the back side. Colors can be produced according to RAL, Pantone, wood grain, stone grain, metallic, matte, high gloss, or customized samples. Gloss can generally be adjusted from low matte to high gloss, depending on coating formulation and project style.

Key Features and Product Advantages

Prepainted aluminum coil combines the lightweight nature of aluminum with the protective and decorative value of organic coating. Compared with steel, aluminum has natural corrosion resistance and lower density, which helps reduce structural load and transportation cost. This is especially useful in roofing, cladding, ceiling, and composite panel production.

Good formability is another practical advantage. A properly produced color coated aluminum coil can be bent, roll formed, embossed, slit, or laminated without paint cracking. In factory testing, we normally pay close attention to T-bend performance, impact resistance, pencil hardness, MEK rubbing resistance, cross-cut adhesion, salt spray resistance, and color difference Delta E. These tests reflect how the material will behave in real processing conditions.

Surface quality is also critical. Professional buyers usually check for color uniformity, waviness, pinholes, scratches, orange peel, coating lines, and edge defects. For products such as aluminum composite panels and decorative sheets, even minor shade variation may cause visible problems after installation. That is why stable paint batches, controlled curing, and careful recoiling tension are necessary.

For customers who need decorative sheet processing, pre painted aluminium provides a flexible base material for cutting, bending, punching, and lamination. It can deliver the appearance required by architects while keeping production efficiency high for fabricators.

Applicable Scenarios in Real Projects

Prepainted aluminum coil is widely used in aluminum roofing systems, rain gutters, roller shutters, ceiling panels, venetian blinds, garage doors, signboards, insulation jackets, household appliances, lighting fixtures, and curtain wall panels. In the construction industry, PVDF coated aluminum is often selected for airports, stations, commercial complexes, schools, hospitals, and coastal buildings because these projects require long-term weatherability.

PE coated aluminum is commonly used for indoor decoration, advertising panels, electronic casings, and products where strong UV resistance is not the main concern. Wood grain and stone grain coated coils are popular for doors, ceilings, wall panels, and furniture decoration because they create a natural appearance without the weight and maintenance requirements of real wood or stone.

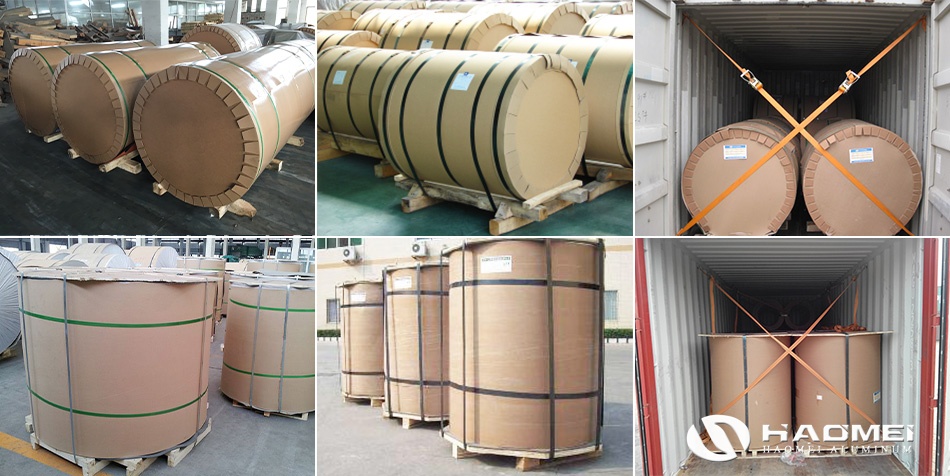

In export markets, packaging deserves serious attention. Moisture, sea freight vibration, and rough handling can damage coils before they reach the customer. Standard export packing usually includes eye-to-wall or eye-to-sky placement, plastic film, moisture-proof paper, hardboard protection, steel or wooden pallets, edge protectors, and secure strapping. For long-distance shipment, a well-packed coil is part of the product quality, not an optional accessory.

Factory Selection Tips from Production Experience

When evaluating a prepainted aluminum coil factory, do not only ask for price per ton. Ask about alloy source, paint brand, pretreatment type, coating thickness tolerance, color control method, testing standards, lead time, and after-sales support. Sample approval should include both visual inspection and performance testing. If the project is outdoors, confirm weathering requirements before selecting PE, HDP, SMP, PVDF, or FEVE.

A dependable factory can recommend a practical specification instead of simply accepting any request. For example, a very hard temper may not be suitable for deep bending, while an economical coating may not survive strong sunlight in coastal or desert environments. Matching alloy, temper, coating, and application is where real technical value appears.

For manufacturers, distributors, and project contractors, choosing the right prepainted aluminum coil factory means gaining stable color, reliable processing performance, durable protection, and fewer quality disputes. With mature coating technology, strict inspection, and export-oriented service, color coated aluminum can support both functional performance and modern architectural design.
