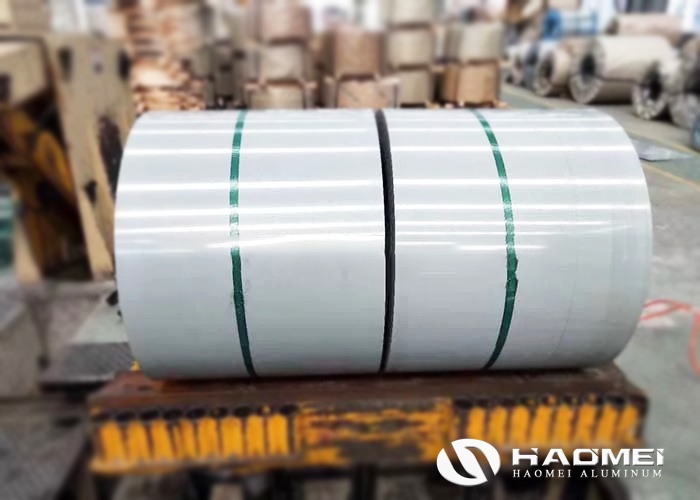

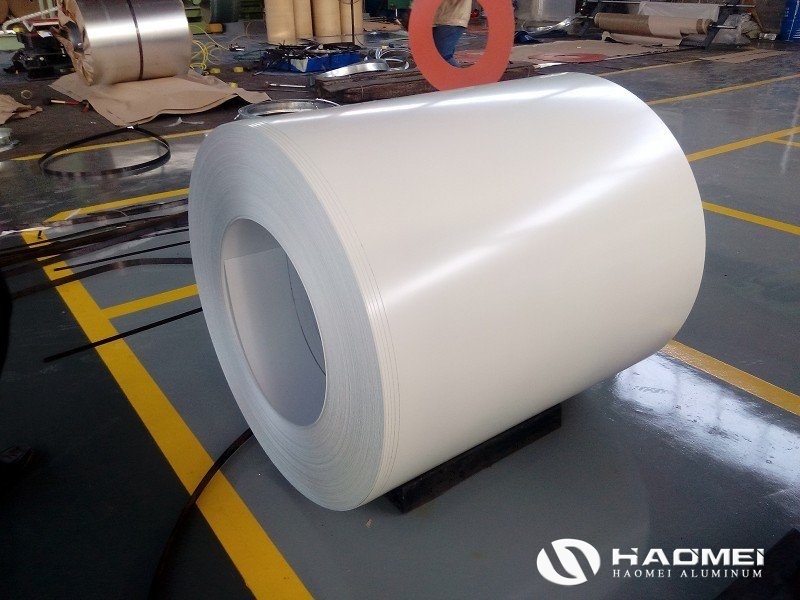

Coil Coated Aluminum Sheet

Coil coated aluminum sheet has become a go-to material wherever designers and fabricators need a clean surface finish, stable color, and lightweight corrosion resistance at scale. From architectural cladding to transportation panels and HVAC components, the appeal is less about novelty and more about repeatability: coil coating is an industrial process built around controlled film thickness, stable curing, and consistent gloss and color from coil to coil.

Why coil coating delivers consistency that post-painting struggles to match

In coil coating, aluminum strip is cleaned, chemically pretreated, coated, and oven-cured continuously before it is slit, leveled, or formed into finished parts. The key advantage is that the coating is applied on a flat, controlled substrate rather than on complex fabricated geometries. That difference shows up in measurable ways: tighter film-thickness tolerances, more uniform gloss, and fewer application-related defects like dry spray, edge shadowing, or overspray contamination.

Modern lines rely on closed-loop control for parameters such as strip speed, peak metal temperature, and coating pickup. These are the variables that quietly determine whether a sheet bends cleanly without micro-cracking, whether a façade panel keeps a uniform appearance under sunlight, and whether a roll-formed profile maintains edge coverage after forming.

One practical industry detail often overlooked outside the sector: coil coatings for architectural aluminum are commonly specified and tested under AAMA 2605 when long-term exterior durability is required (especially for high-UV, high-salt environments). Meeting this benchmark typically involves premium resin systems and disciplined process control rather than cosmetic tweaks.

Coating systems that match real service environments

Not all coil coated aluminum sheet is intended for the same job, and the resin system matters.

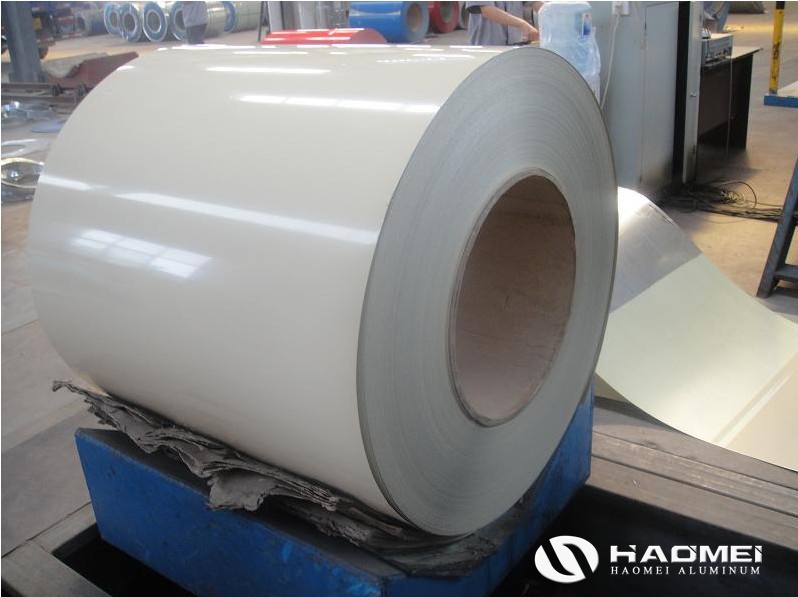

• PVDF (polyvinylidene fluoride) coatings are widely used for exterior building envelopes because they hold color and gloss well under UV exposure and weathering. When the project expects multi-decade appearance retention, PVDF is frequently the default choice.

• PE (polyester) coatings are a cost-effective option for interior applications, short-to-medium outdoor service, and general-purpose products where color selection and formability are priorities.

The performance story also includes what happens before paint: surface pretreatment. A properly controlled pretreatment layer improves adhesion and corrosion resistance, supporting the coating through forming and in long-term exposure. This is why reputable mills emphasize line cleanliness, water quality management, and conversion-coating stability, even though these details rarely appear on a purchase order.

Core advantages buyers care about, translated into production outcomes

1. Stable appearance across batches
Coil coating is engineered for repeatability. For buyers producing branded products or large façade packages, consistency reduces sorting, rework, and on-site disputes about visual mismatch.

2. Formability with reliable edge behavior
The right pairing of alloy, temper, primer, and topcoat enables bending, roll forming, and light embossing without sacrificing adhesion. This is especially relevant for profiles, cassette panels, and appliance skins.

3. Corrosion resistance with controlled total system design
Durability is not only "paint quality." It is the combination of aluminum substrate, pretreatment, primer, topcoat, and curing. When these are tuned together, the sheet performs predictably in humid coastal regions, industrial atmospheres, and high-UV zones.

4. Efficient fabrication and cleaner downstream operations
Using prefinished sheet reduces the need for post-painting, which helps shorten lead times and lowers exposure to paint-shop variables. Fabricators often value this for throughput and cleanliness as much as for aesthetics.

Where coil coated aluminum sheet is being used

Architectural envelopes: curtain wall panels, soffits, cladding, fascia, rain-screen systems, and decorative trims. Projects often specify PVDF-based systems and require controlled gloss and color tolerance.

HVAC and insulation jacketing: ductwork skins, protective covers, and system panels. Lightweight handling, clean appearance, and corrosion resistance matter in both industrial and commercial settings.

Transportation and logistics: trailer side panels, vehicle body components, container and box panels, and interior linings. Here, dent resistance, formability, and surface cleanliness impact both assembly efficiency and lifecycle appearance.

General manufacturing: equipment housings, signage, and consumer-facing metal parts where visual consistency and production efficiency drive the material choice.

For product planners comparing specifications, it can be useful to review common gauge ranges, coating options, and application matching under coated aluminum coil, especially when deciding between PE and PVDF systems.

A purchasing note: what to ask for to avoid performance gaps

Specifications are most effective when they reflect service conditions. In addition to color and gloss targets, buyers often request coating thickness ranges, bend radius guidance, adhesion testing, solvent rub resistance, and (for architectural programs) AAMA-aligned performance expectations. Another real-world detail that helps: if your material will be roll-formed or heavily bent, requesting test panels from the same coating build can prevent surprises that only show up after tooling is committed.

Coil coated aluminum sheet is, at its best, a system material: engineered surface, controlled curing, and predictable fabrication behavior. When those fundamentals are managed well, the resulting sheet supports faster production, stable appearance, and long service life across a wide range of applications.
