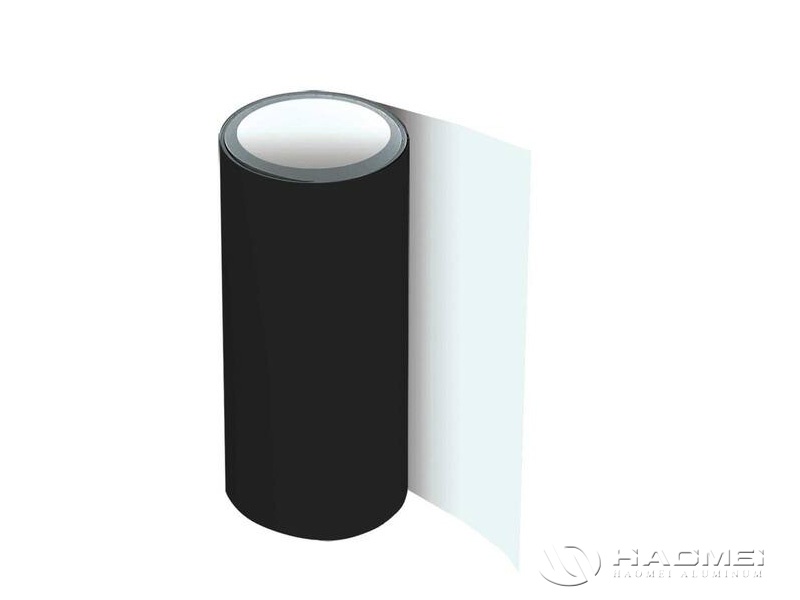

Aluminum Trim Coil Stock

As exterior building materials continue to move toward lighter weight, lower maintenance, and better long-term appearance, aluminum trim coil stock has become a practical choice for contractors, distributors, and building material fabricators. Used for window wrapping, fascia, soffit edges, door frames, roofline details, and siding accessories, this prefinished material supports both efficient installation and durable architectural performance.

Unlike painted components fabricated after installation, trim coil stock is coated under controlled production conditions. This allows the surface finish, thickness, adhesion, and color uniformity to be managed before the coil reaches the jobsite. For projects that require repeatable quality across multiple houses, commercial storefronts, or renovation programs, that consistency is becoming increasingly important.

Precision Coating Technology Behind Stable Performance

The technical value of aluminum trim coil stock begins with substrate selection. Common exterior grades such as 3105 or 3003 aluminum provide a balance of formability, corrosion resistance, and strength. In many building applications, tempers such as H24 or H26 are preferred because they allow bending and hemming without excessive springback or cracking.

Surface treatment is another key factor. Before coating, the aluminum surface is cleaned and chemically pretreated to improve paint adhesion and corrosion resistance. Modern coil coating lines typically apply primer and topcoat in continuous processes, followed by controlled curing. For demanding exterior exposure, polyester, SMP, and PVDF systems are used depending on the service environment and project requirements.

A real industry benchmark is AAMA 2605, often referenced for high-performance exterior coatings using 70% PVDF resin systems. While not every trim coil project needs this level, the standard is widely recognized for color retention, chalk resistance, and weathering performance. For general residential trim, well-formulated polyester coatings remain cost-effective and reliable when produced with proper film thickness and curing control.

Core Advantages for Fabricators and Installers

One reason aluminum trim coil stock is widely adopted is its ability to be formed on site or in a fabrication shop. Installers can cut, bend, brake, and wrap the material to match specific building details without waiting for custom rigid profiles. This flexibility reduces waste and improves response time, especially for remodeling work where dimensions vary from project to project.

The material also offers a favorable strength-to-weight ratio. Compared with steel, aluminum is easier to handle and naturally resistant to red rust, which is useful for coastal housing, humid climates, and roofline applications. Compared with vinyl trim, aluminum provides sharper bends, cleaner edges, and better dimensional stability under temperature changes.

For buyers evaluating supply options, our aluminum trim coil range is developed around practical exterior requirements such as consistent coating, smooth bending performance, and stable color matching across production batches.

Application Scenarios Across Building Envelopes

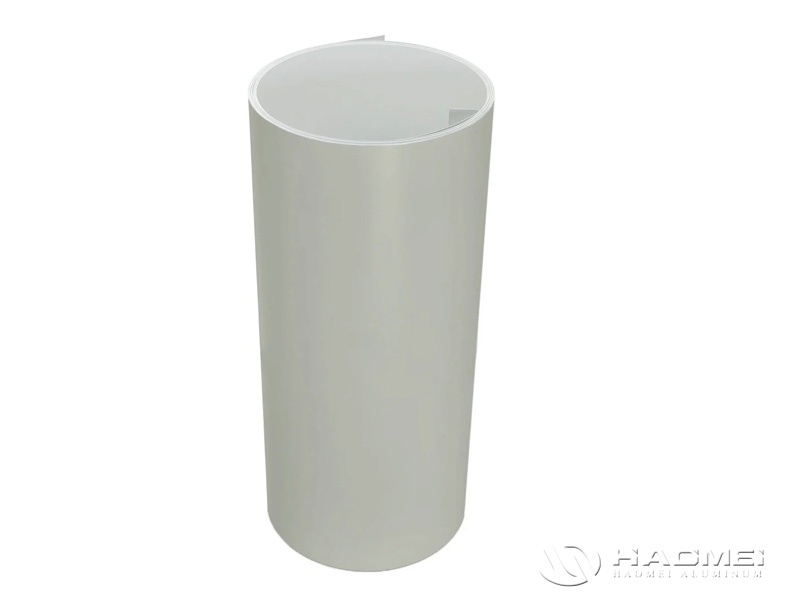

In residential construction, aluminum trim coil stock is commonly used for fascia covers, rake boards, window casings, garage door surrounds, and porch posts. Standard trade sizes such as 24 inches by 50 feet remain popular in North America because they fit common brake equipment and reduce cutting complexity. Thicknesses such as .019 inch and .024 inch are frequently selected depending on local practice, budget, and required rigidity.

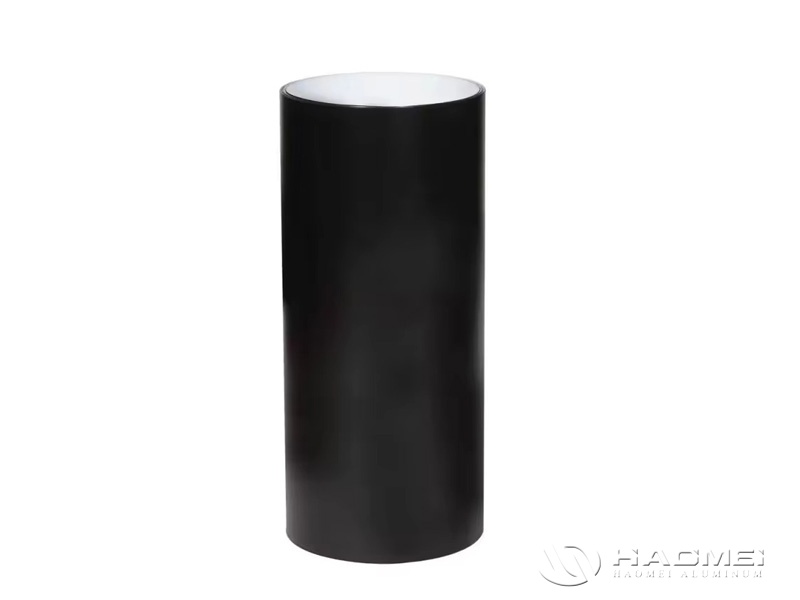

For commercial and light industrial buildings, coated aluminum trim coil is used around curtain wall edges, parapet caps, signage returns, and exterior cladding transitions. The availability of colors such as black, brown, gray, bronze, white, and custom architectural shades helps designers align trim details with windows, panels, roofing, and composite materials.

Color consistency is especially important for distributors serving repeat orders. A slight shade difference may be visible when coil stock is installed next to window frames or siding panels under direct sunlight. Controlled color measurement, batch tracking, and standardized gloss ranges help reduce this risk.

Manufacturing Details That Matter in Real Projects

Beyond appearance, dimensional accuracy influences installation efficiency. Width tolerance, coil edge quality, and flatness can affect how smoothly the material feeds through brakes, slitters, and roll-forming equipment. Burrs or uneven edges may lead to surface scratches during fabrication, while inconsistent temper can create unpredictable bending results.

Packaging also matters in export supply. Trim coil stock is vulnerable to edge damage and moisture staining if not properly wrapped, secured, and protected during ocean transport. Export-ready packaging usually includes moisture-resistant wrapping, edge guards, strong pallets, and clear coil identification for warehouse handling.

For global buyers, compliance with recognized material references such as ASTM B209 or EN 485 helps simplify communication between suppliers, fabricators, and project owners. These standards provide common language for aluminum sheet and coil properties, reducing uncertainty in cross-border procurement.

A Material Aligned With Efficient Exterior Construction

The growing use of aluminum trim coil stock reflects a broader shift in construction: materials must be adaptable, durable, and visually reliable. With controlled coating technology, workable aluminum substrates, and a wide range of colors and sizes, trim coil stock supports both large distribution programs and custom exterior details.

For builders, it helps create clean transitions and long-lasting edges. For fabricators, it offers dependable forming behavior. For importers and distributors, it provides a versatile product category that fits residential, commercial, renovation, and roofing-related demand across multiple markets.
