6 Inch Gutter Coil

A 6 inch gutter coil is one of the most widely used materials for residential and light commercial rainwater drainage systems. Compared with sectional gutters, coil-fed seamless gutter production allows contractors to form long, continuous runs directly on site, reducing joints, improving appearance, and lowering the risk of leakage. From a production and export perspective, the quality of the coil determines not only the forming performance of the gutter machine, but also the long-term durability of the installed gutter system.

What Is a 6 Inch Gutter Coil?

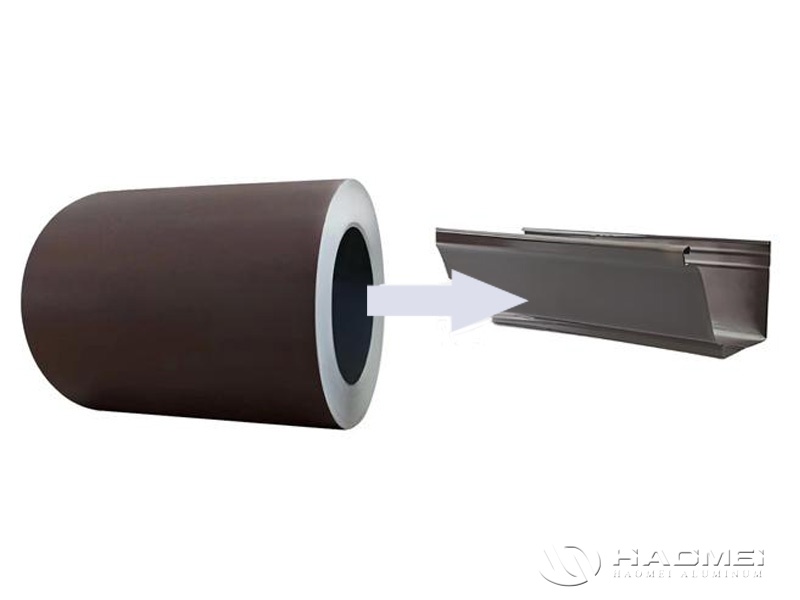

A 6 inch gutter coil refers to pre-painted or mill finish aluminum coil slit to a suitable width for roll forming 6 inch K-style or fascia-style gutters. The 6 inch size is commonly selected when roof areas are larger, rainfall intensity is higher, or the building design requires higher drainage capacity than a standard 5 inch gutter can provide.

For seamless gutter production, the coil must have stable width tolerance, smooth edges, consistent coating, and proper temper. If the coil is too soft, the gutter may deform during handling. If it is too hard, it may crack at the corners or create stress marks during roll forming. This balance is where experienced aluminum coil manufacturing becomes important.

Main Technical Specifications

Typical specifications for 6 inch gutter coil include:

• Alloy: 3003, 3105, or equivalent aluminum alloy

• Temper: H24, H26, or customized temper depending on machine requirements

• Thickness: commonly 0.027 inch, 0.032 inch, or customized gauges

• Coil width: produced according to the gutter profile, usually based on customer drawing or machine setting

• Coating: polyester, high-durability polyester, or PVDF for premium weather resistance

• Surface: smooth, embossed, matte, glossy, or wood grain options

• Colors: white, brown, black, bronze, gray, cream, green, and customized RAL colors

• Inner diameter: commonly 16 inch, 20 inch, or as requested

• Packaging: eye-to-wall or eye-to-sky, with moisture-proof and export-grade protection

In actual production, thickness tolerance, paint adhesion, and coil flatness are the three items I pay close attention to. A beautiful color card is not enough. The coil must run smoothly on a gutter machine, maintain edge integrity after slitting, and resist cracking at formed corners.

Key Features of Quality Aluminum Gutter Coil

High-quality aluminum gutter coil has several clear features. First, it has excellent corrosion resistance. Aluminum naturally forms an oxide layer, while painted coating adds another protective barrier against rain, UV exposure, and pollutants.

Second, it is lightweight but strong enough for daily use. This helps installers handle long coils efficiently and reduces the load on the fascia board. Third, aluminum is easy to roll form, which is essential for seamless gutter fabrication. A consistent temper allows the profile to be formed cleanly without wrinkles, chatter marks, or edge waves.

Another important feature is color consistency. For projects involving multiple coils or repeat orders, color difference can be a serious issue. Reliable production control requires stable paint batching, proper curing temperature, and accurate online inspection.

Advantages of 6 Inch Gutter Coil

The main advantage of 6 inch gutter coil is drainage capacity. A 6 inch gutter can handle more water than a 5 inch system, making it suitable for larger roofs, steep slopes, and regions with heavy rainfall. This reduces overflow and helps protect walls, foundations, landscaping, and exterior finishes.

Another advantage is seamless installation. Contractors can produce continuous gutter lengths at the job site, which minimizes seams and joints. Fewer joints mean fewer leak points, better appearance, and reduced maintenance over time.

From a supply chain perspective, coil packaging and loading also matter. Export coils must survive sea freight, warehouse handling, and local transport. Our experience shows that strong edge protection, inner core support, moisture barrier film, and stable pallet design can significantly reduce transit damage. A coil that arrives clean and round saves time for distributors and installers.

For buyers comparing gutter coil manufacturers, technical support is another advantage. Different gutter machines may require slightly different coil width, temper, and coating flexibility. A supplier familiar with real production conditions can help reduce trial costs and avoid compatibility problems.

Coating and Color Options

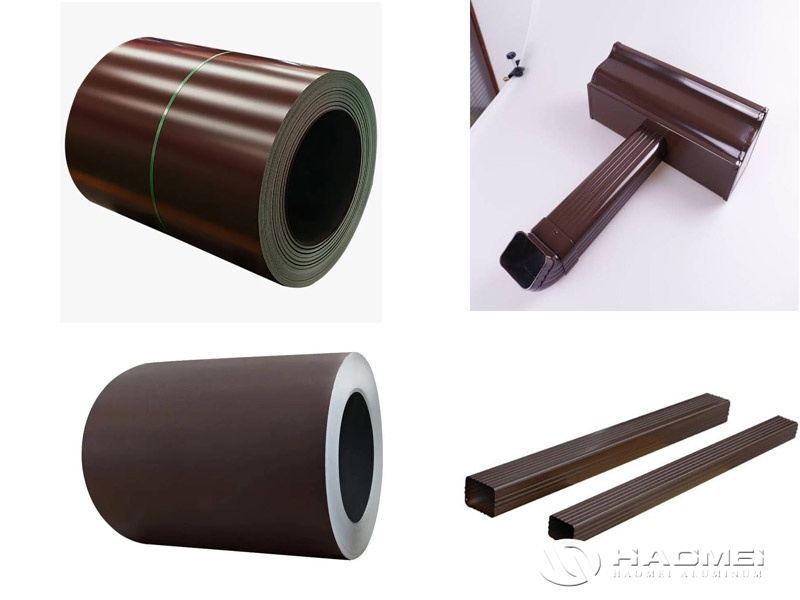

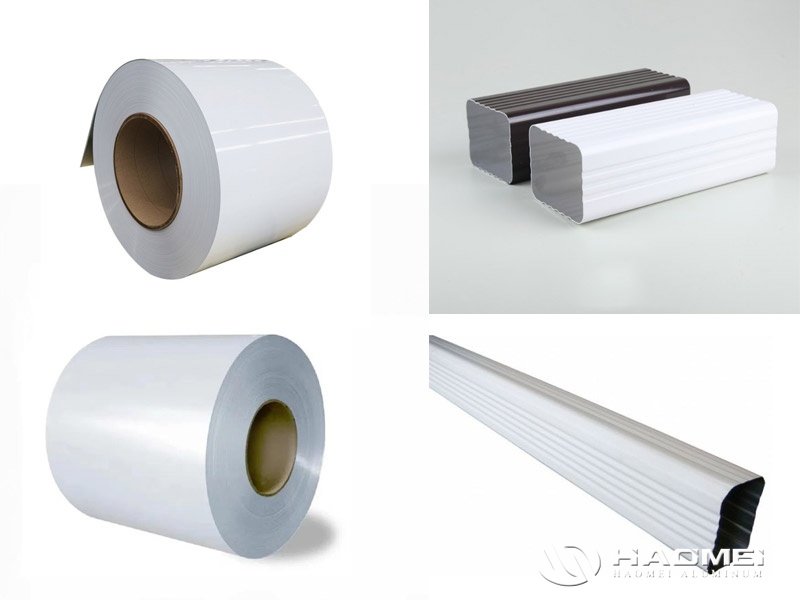

White gutter coil remains the most popular choice in many markets because it matches common fascia, soffit, and siding colors. Brown, bronze, and black are also popular for modern residential projects and commercial buildings. The coating system should be selected according to climate and project level.

Polyester coating is economical and suitable for standard residential use. High-durability polyester improves UV and chalking resistance. PVDF coating is preferred for coastal areas, premium buildings, or environments with strong sunlight and high humidity. For any coating type, adhesion, gloss retention, and color stability are key performance indicators.

Applicable Scenarios

A 6 inch gutter coil is suitable for villas, apartments, schools, offices, warehouses, workshops, and light commercial buildings. It is especially practical for projects where long roof runs demand efficient water collection. In areas with frequent storms, wider gutters combined with suitable downspouts can improve drainage reliability.

It is also a strong choice for contractors who operate seamless gutter machines. Instead of keeping many pre-cut sections in stock, they can carry coils and fabricate customized lengths on demand. This improves flexibility, reduces waste, and supports faster installation.

Distributors benefit from offering multiple colors and gauges. Standard colors such as white and brown move quickly, while customized colors can help win project orders. When coils are supplied with accurate labels, batch numbers, and protective packaging, inventory management becomes easier and more professional.

Practical Buying Tips

When purchasing 6 inch gutter coil, do not focus only on price per ton. Check alloy, temper, thickness tolerance, coating type, paint thickness, slitting quality, coil weight, and packaging method. Request samples or trial coils if using a new gutter machine or changing profiles.

A stable supplier should provide consistent specifications, clear documentation, and responsive communication. For export orders, container loading experience is also valuable. Proper loading reduces deformation, moisture issues, and claims. In the gutter industry, a reliable coil is not only a raw material; it is the foundation of efficient installation and long-term customer satisfaction.
