10 Inch Aluminum Trim Coil

A 10 inch aluminum trim coil is a practical width for fabricators, contractors, and distributors who need clean, consistent exterior trim material without excessive cutting waste. In daily production and export work, I often see this size selected for fascia covers, window and door trim, rake boards, garage surrounds, and custom flashing details. It is narrow enough for easy forming on a portable brake, yet wide enough to cover many common residential and light commercial trim profiles.

Main Specifications of 10 Inch Aluminum Trim Coil

The most common base material for 10 inch aluminum trim coil is 3000 series or 3105 aluminum alloy, chosen for its balance of corrosion resistance, formability, and stable mechanical properties. For trim applications, H24, H26, or similar tempers are widely used because they provide enough rigidity after bending while still allowing clean forming without cracking.

Typical specifications include:

• Width: 10 inches, with tight slitting tolerance for consistent brake work

• Thickness: commonly 0.019 inch, 0.021 inch, 0.024 inch, or customized gauges

• Coil length: often supplied in 50 ft, 100 ft, or project-specific lengths

• Inner diameter: generally 16 inches or customized for distributor packaging

• Surface: smooth, embossed, wood grain, matte, or high-gloss finish

• Coating system: polyester, modified polyester, PVC, or PVDF depending on performance needs

• Colors: white, black, brown, gray, bronze, clay, sandstone, blue, green, and custom matched colors

For buyers comparing multiple sizes, our broader aluminum trim coil range can support different widths, coating systems, and color requirements for mixed project packages.

Coating Quality and Surface Performance

The value of a trim coil is not only in the aluminum substrate. The coating structure is equally important. A well-produced 10 inch aluminum trim coil should have stable paint thickness, strong adhesion, good flexibility, and reliable weather resistance. During production inspection, we pay attention to color difference, gloss consistency, pencil hardness, T-bend performance, impact resistance, and film integrity after slitting.

For exterior building use, coating adhesion is especially important because the coil is repeatedly bent, hemmed, and cut at the jobsite. If the coating is too brittle, edge cracking or whitening may appear after forming. A balanced coating formulation helps the material maintain an attractive surface even after tight bends.

PVC-coated options provide a thicker protective layer and are often preferred where scratch resistance and richer surface texture are required. Polyester-coated coils are economical and widely accepted for standard trim work. PVDF coating is usually selected for demanding architectural projects where long-term UV resistance and color retention are priorities.

Key Features Contractors Appreciate

From field feedback, installers usually care about three things: bendability, color consistency, and surface durability. A good 10 inch aluminum trim coil should feed smoothly into the brake, hold sharp lines, and avoid oil canning when applied on visible trim areas. Consistent thickness also matters because uneven gauge can affect forming pressure and finished appearance.

The 10 inch width is particularly convenient for repetitive components. It reduces the need to cut down wider coil stock, saving labor and improving material yield. This is important for contractors who fabricate multiple trim pieces on site and need fast, repeatable results.

Another useful feature is light weight. Aluminum is easy to transport, lift, and handle, especially compared with steel. At the same time, it naturally resists rust, making it suitable for exterior exposure, coastal environments, and areas with seasonal moisture.

Advantages of Using 10 Inch Aluminum Trim Coil

The first advantage is precision. Factory-slit 10 inch coil offers better edge quality than manually cutting from wide stock, which helps improve the final appearance of folded trim profiles.

The second advantage is efficiency. Because many trim details fall within this width range, contractors can reduce waste and speed up installation. For export distributors, 10 inch aluminum trim coil is also easy to package as a specialized SKU for siding, roofing, window, and renovation markets.

The third advantage is design flexibility. With various coatings and colors available, the coil can match vinyl siding, metal roofing, gutter systems, or architectural panels. Dark colors such as black and bronze are increasingly popular in modern residential design, while white and clay remain strong choices for traditional exterior trim.

For projects requiring a heavier and widely recognized gauge, 024 trim coil is often chosen for a stronger hand feel and improved dent resistance in exposed areas.

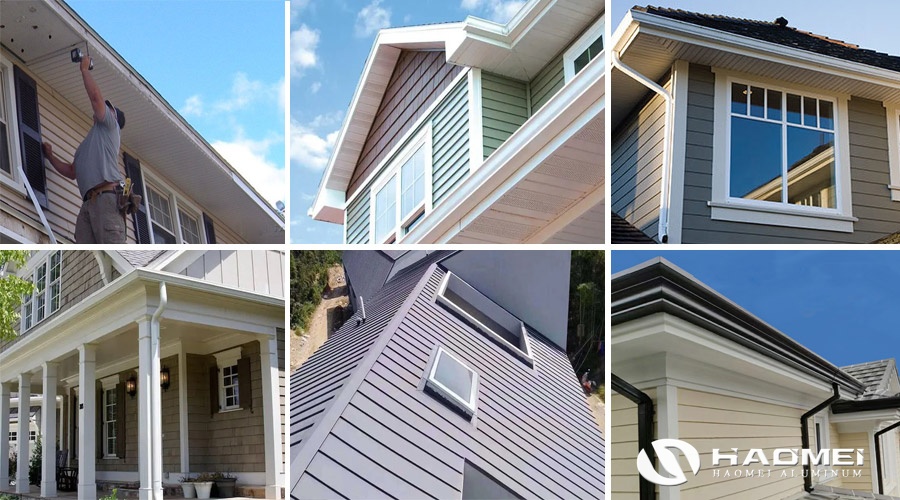

Applicable Scenarios

A 10 inch aluminum trim coil is suitable for many building envelope details, including:

• Window and door casing

• Fascia and rake trim

• Porch beam wrapping

• Garage door trim

• Siding edge protection

• Drip caps and small flashing profiles

• Renovation of wooden exterior trim

• Decorative metal wrapping for residential projects



In renovation work, aluminum trim coil is often used to cover aging wood. This reduces repainting frequency and improves weather protection. In new construction, it helps create a neat, low-maintenance exterior finish. For builders working across different climates, coated aluminum offers a dependable combination of corrosion resistance, formability, and color options.

Practical Buying Insights

When sourcing 10 inch aluminum trim coil, do not evaluate price alone. Confirm alloy, temper, thickness tolerance, coating type, color standard, gloss range, packaging method, and test reports. For export orders, packaging is also critical. Coils should be protected against moisture, edge damage, and surface abrasion during container transportation.

A professional supplier should be able to provide stable color matching between batches, accurate slitting, clean coil winding, and clear labeling. These details may seem small, but they directly affect distributor inventory control and installer satisfaction. In our production experience, consistent quality reduces complaints, improves repeat orders, and gives contractors confidence when using the material on visible exterior surfaces.

For buyers who need reliable performance, attractive finish options, and efficient jobsite handling, 10 inch aluminum trim coil remains one of the most practical choices in the exterior trim market.
