Color Coated Aluminum Coil Factory

Color Coated Aluminum Coil Factory operations are drawing renewed attention as construction, HVAC, and consumer goods manufacturers look for lightweight materials that can hold color, resist corrosion, and run smoothly on high-speed forming lines. Behind the glossy surface of a prepainted coil is a tightly controlled manufacturing process where metallurgy, surface chemistry, and automation determine whether a coil performs consistently in real-world projects.

Process capability: where coating quality is really decided

A modern coil coating line is essentially a continuous paint-and-cure system designed for stability over long production runs. Key strengths typically start with surface pretreatment. Conversions and passivation steps are engineered to improve adhesion and reduce under-film corrosion, especially critical for building envelopes exposed to humidity, coastal salt spray, or industrial pollutants.

The coating stage then relies on precision film controluniform wet film thickness, stable viscosity, and consistent roll pressurebefore the coil enters high-efficiency curing ovens. In practice, production teams monitor peak metal temperature (PMT) and line speed as paired variables: PMT must be high enough to fully cure the resin system, while excessive heat can hurt gloss, flexibility, or color. Plants with robust automation and closed-loop controls are better positioned to keep PMT and coating thickness stable across coil widths and changing ambient conditions.

One real industry detail that buyers often overlook: many export-focused factories align color measurement with instrumental standards such as CIE Lab* and routinely control color difference (E) per customer requirement. This matters when coils from different batches must match on large faades or long cladding runs where even slight shade shifts become visible.

Materials engineering: alloy and temper selections that match end-use

A Color Coated Aluminum Coil Factory doesnt only coat aluminumit must match the substrate to the forming and durability needs of each sector. Common choices include 3003/3004 and 3105 series for general building cladding and roofing, where formability and strength balance is needed, and 5052 for applications that demand higher strength and better marine corrosion resistance.

Coating systems further define performance. PE coatings are widely used for interior panels and short-to-medium service life applications with cost sensitivity, while PVDF systems are often specified for premium exterior architecture where long-term color retention and chalk resistance are key. In global project specifications, PVDF frequently appears alongside the AAMA 2605 benchmark for high-performance architectural coatingsan industry reference point that signals durability expectations for faades and curtain wall components.

Quality assurance beyond visual inspection

Top-tier plants treat quality as a data problem rather than a final inspection task. That includes incoming coil checks (thickness, mechanical properties, surface cleanliness), online monitoring (coating weight, gloss, PMT), and finished coil testing (T-bend, impact, adhesion crosshatch, solvent rub, and corrosion tests like salt spray as required).

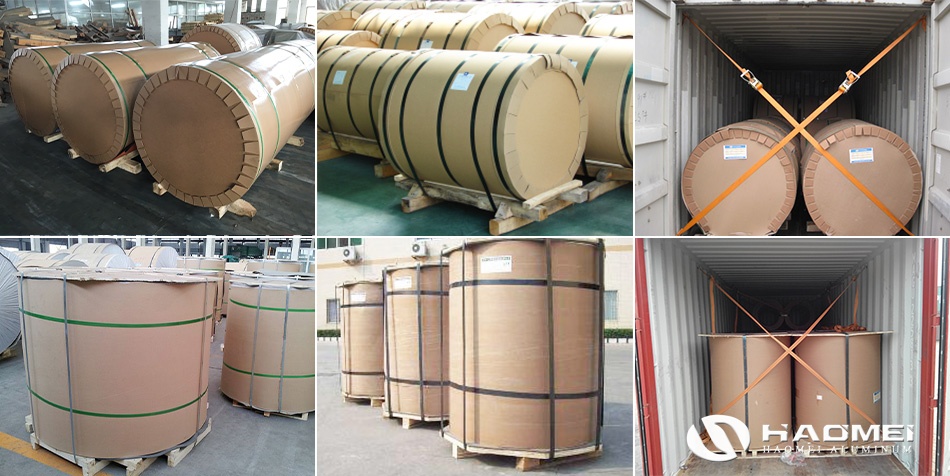

Equally important is packaging engineering for export shipments. Proper edge protection, moisture barriers, and coil eye orientation reduce transit damage, which can otherwise show up as edge dents or coating scratches that only become visible during fabrication.

Application scenarios driving demand

Because prepainted aluminum combines appearance with corrosion resistance and low maintenance, its application map keeps expanding:

• Building envelope systems: roofing, wall cladding, soffits, rainwater goods, and composite panel skins. The light weight supports easier installation and lower structural load compared with many alternatives.

• HVAC and insulation jacketing: coil-coated aluminum is widely used for ducting and outer jackets where cleanability and corrosion resistance matter.

• Home appliances and consumer products: enclosures and decorative panels benefit from consistent gloss and color control, plus the ability to stamp or bend without paint cracking.

• Transportation and modular construction: lightweight panels help with fuel efficiency targets and faster assembly, while coated surfaces cut repainting needs.

For many fabricators, the real advantage is production efficiency: stable coating properties and predictable forming behavior reduce tool wear, scrap, and line stoppages.

What buyers look for in a dependable supply partner

Procurement teams increasingly evaluate not just price, but consistency and traceabilitybatch-to-batch color stability, coating system transparency, and documentation that supports downstream certification. A factorys ability to offer tailored film builds, controlled gloss ranges, protective films, and repeatable lead times can be the difference between smooth project execution and costly rework.

For readers comparing options across product categories, our Color Coated Aluminum Coil range reflects the same manufacturing logic described above: substrate matching, coating-system selection, and process control aimed at reliable performance in fabrication and long-term service.

In todays competitive export market, a strong Color Coated Aluminum Coil Factory is defined by measurable process control, materials engineering depth, and application-driven thinkingqualities that translate into fewer surprises from the first coil to the last panel installed on site, and dependable output for manufacturers building to tight tolerances in global supply chains centered on Color Coated Aluminum Coil Factory.
