Window Trim Coil

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H24

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

Colors : RAL or Pantone or Customized

Application : Windows

Detailed Description

Aluminum trim coil is a versatile and durable material commonly used in construction and home improvement projects, particularly for window and door trim.

Trim coil is used to cover and protect the edges of window frames, providing both aesthetic appeal and functional benefits.

The Specification of Window Trim Coil:

Alloy	1100, 3003, 3004, 3105, 5005
Temper	H14, H16, and H24 temper
Thickness	0.019 inches (0.48 mm) to 0.040 inches (1.02 mm)
Width	typically 12 inches to 48 inches (305 mm to 1219 mm)
Length	50 to 1000 feet (15 to 305 meters)
Finish	Often coated with a high-quality paint finish, such as Kynar 500 or Hylar 5000, for enhanced durability and aesthetic appeal.
Color	Available in a wide range of colors, including standard colors and custom colors
Coating	polyester, silicone-modified polyester, or fluoropolymer (Kynar) coatings
Standards	ASTM
MOQ	1-2 Tons
Applications	Commonly used for exterior building trim, fascia, soffit, window surrounds, and other architectural applications.

The Features of Window Aluminum Trim Coil:

Durability: Aluminum is resistant to rust and corrosion, making it ideal for outdoor applications. It can withstand various weather conditions without deteriorating.
Lightweight: Compared to other materials like steel, aluminum is lightweight, which makes it easier to handle and install.
Low Maintenance: Aluminum trim requires minimal maintenance. It can be cleaned easily and typically does not need painting, especially if it is pre-finished or coated.
Aesthetic Options: Aluminum trim coil is available in various colors and finishes, allowing homeowners to choose options that match their home’s exterior.
Versatility: It can be used for various applications, including window and door trim, fascia, soffit, and other decorative elements.
Customizable: Trim coils can be custom-formed to fit specific dimensions and shapes, making them suitable for unique architectural designs.

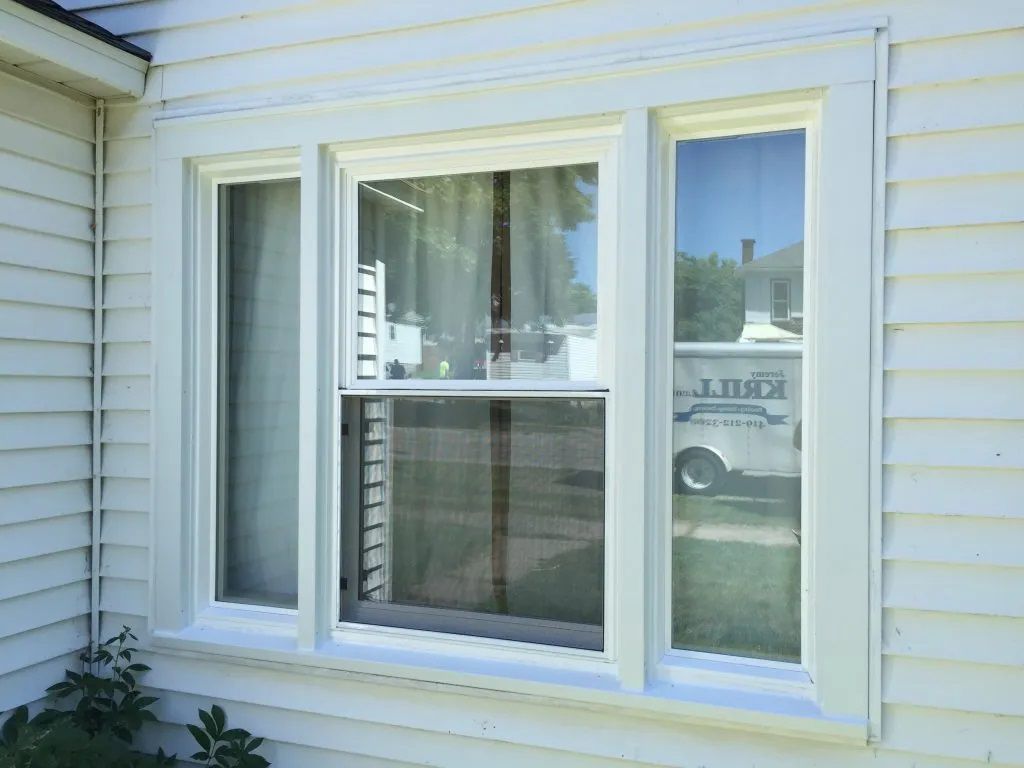

The Application of Trim Coil For Windows:

Capping: Trim coil is often used to cap the tops and sides of wood window frames, protecting them from moisture and extending their lifespan.
Window Sills: It can be shaped to create window sills, providing a finished look while protecting the underlying materials.
Decorative Trim: Trim coil can be used as decorative trim around windows to enhance the overall aesthetic of the home.
Flashing: In some cases, trim coil may be used as flashing to divert water away from the window and prevent leaks.
