White Painted Aluminum Sheet

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005, 5052

Temper : H14, H16, H24 etc

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

Colors : White

Application : Roofing, composite panel, trailer, shutter, gutter

Detailed Description

White painted aluminum sheet is a kind of building material with aluminum alloy as the base material and the surface is coated. It has excellent corrosion resistance, light weight and high strength, easy processing, etc. It is widely used in building facades, interior decoration, advertising signboards and other fields. The white coating is not only aesthetically pleasing, but also effectively reflects sunlight, reduces heat absorption and improves energy efficiency.

When referring to white painted aluminium in the context of the RAL color system, the most commonly used RAL colors for white aluminum sheets are:

RAL 9001: Cream

RAL 9002: Grey White

RAL 9003: Signal White

RAL 9004: Signal Black

RAL 9005: Jet Black

RAL 9006: White Aluminium

RAL 9007: Grey Aluminium

RAL 9008: Grey Olive

RAL 9010: Pure White

RAL 9016: Traffic White

Specification of White Painted Aluminum Sheet:

Aluminum Alloy:	1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.
Thickness:	0.08-5.0mm
Width:	＜2650mm
Coils Core Diameter:	150mm, 405mm, 505mm, 508mm, 510mm
Coating Thickness:	PVDF>=25micron, PE>=18micron
Color Standard:	E < 2 or it is not obvious by eyeballing
Pencil Hardness:	> 2HB
Coating Adhesive:	not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
T Bend:	≤ 2 T
Boiling Point:	no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive:	surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change

Features of White Painted Aluminium Sheet:

- High Gloss;
- Wide Range Of Color ;
- Good Mechanical Processing Performance;
- Impact And Weather Resistance;
- Easy For Processing And Installation;
- Excellent Torsion Strength.

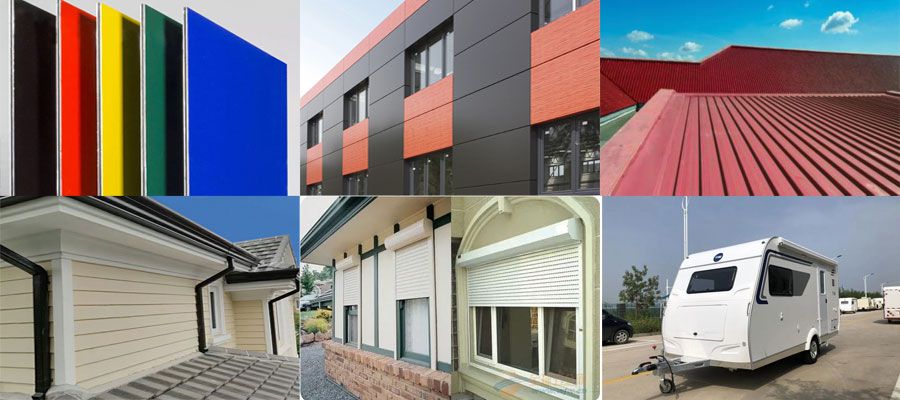

Application of White Painted Aluminum:

Application	Outdoor Applications	curtain wallboard, facades, solar collector, shutter doors, aluminum composite panel, roofing,gutter
	Indoor Applications	wall cladding, ceilings, bathrooms, kitchens and balconies, blinds,shutter doors, aluminum spacer
	Advertisement and Market Applications	display platforms, signboards, fascia and shop fronts,license plate/name plate ,channel letter
	Transportation	truck and container
