White Diamond Plate
Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005
Temper : H14, H24
Thickness : 0.08 - 5 mm
Width : 100 - 2650 mm
Coating : PE, PVDF, HDPE, FEVE
Colors : RAL or Pantone or Customized
Application : Decoration, wall, door, floor

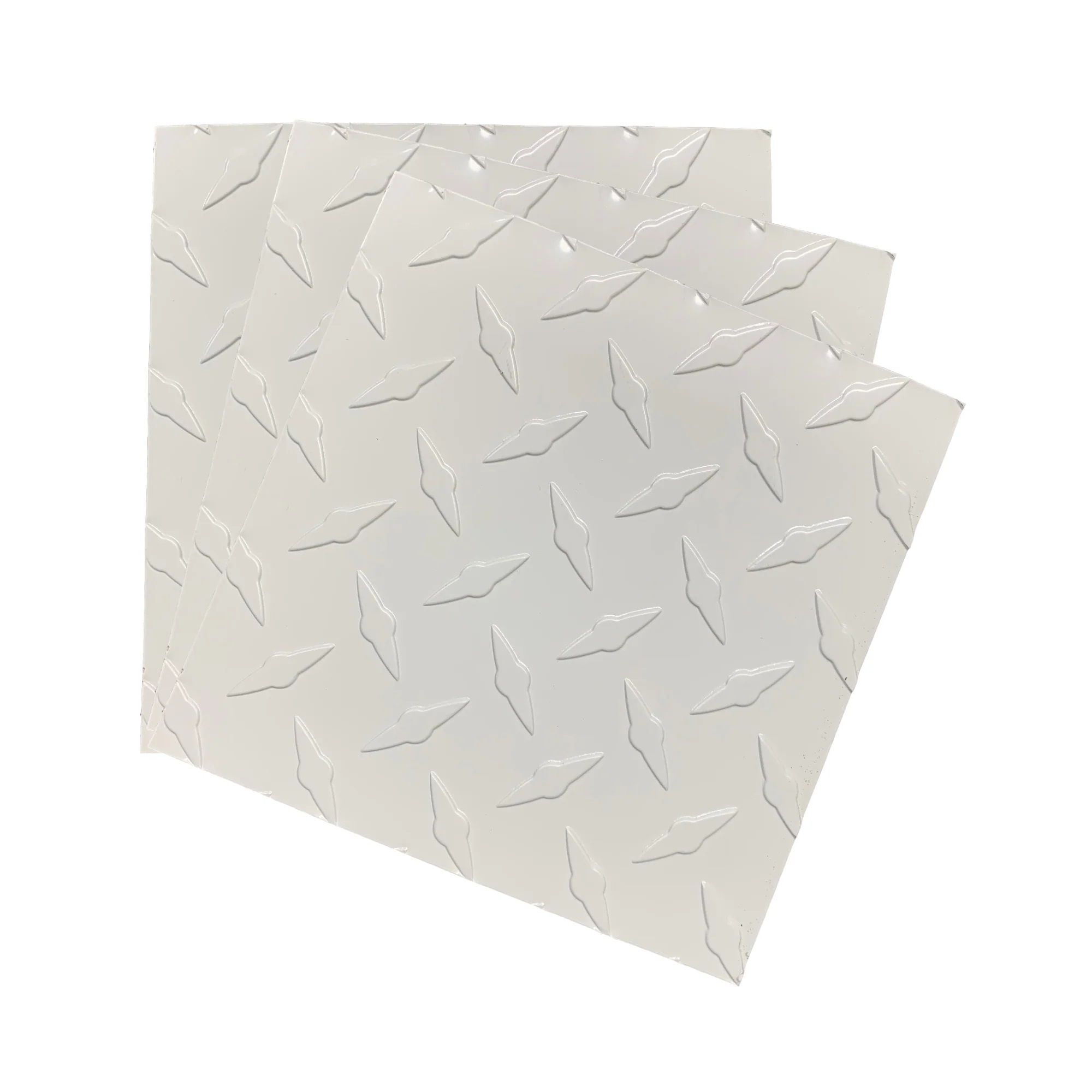

White aluminum diamond plate is a type of metal sheet that features a raised diamond pattern on its surface, providing both aesthetic appeal and functional benefits. It is made from aluminum, which is known for its lightweight, corrosion resistance, and durability. The white finish adds a clean and modern look, making it suitable for various applications.
The Specification of White Diamond Plate:
Alloy:
Typically made from 1060, 3003, 5052 or 6061 aluminum alloys, which offer a good balance of strength and corrosion resistance.
Thickness:
Ranges from 0.025 inches (0.635 mm) to 0.125 inches (3.175 mm) or more, depending on the application. Thicker plates provide greater strength and durability.
Sheet Size:
Often available in standard sizes such as 4' x 8', 4' x 10', or custom dimensions depending on the supplier and project requirements.
Diamond Pattern:
The raised diamond pattern typically has a height of about 0.1 inches (2.54 mm) and varies in size and spacing depending on the design specifications.
Weight per Square Foot:
The weight of white aluminum diamond plate can vary based on thickness; for example, a 0.125-inch thick sheet weighs approximately 3.0-3.5 pounds per square foot.
Types of Finish:
Anodized: A protective layer that enhances corrosion resistance and surface hardness.
Powder Coated: Offers a durable finish in various colors, including black, and provides UV resistance.
Painted: A painted finish can also be used for aesthetic purposes.
Mechanical Properties:
Tensile Strength: Generally ranges from 31,000 to 40,000 psi (pounds per square inch) depending on the alloy used.
Yield Strength: Typically around 20,000 to 30,000 psi.
The Features of White Checker Plate:
Lightweight:
Easier to handle and install compared to steel options.
Corrosion Resistance:
Aluminum naturally forms a protective oxide layer, making it suitable for outdoor use.
Aesthetic Appeal:
The diamond pattern and white finish provide a modern look.
Versatile:
Can be easily cut, shaped, and welded for custom applications.
The Application of Whtie AluminumDiamond Plate:
Flooring:
Used in trailers, trucks, and other vehicles for skid resistance and durability.
Wall Panels:
Often used in commercial and industrial settings for protective wall coverings.
Decorative Applications:
Can be used for signs, displays, and other decorative elements.
Toolboxes and Cabinets:
Popular for constructing storage solutions due to its strength and lightweight nature.
