White Aluminum Coil Roll

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005, 5052

Temper : H14, H16, H24 etc

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

Colors : White

Application : Roofing, composite panel, trailer, shutter, gutter

Detailed Description

White aluminum coil roll is made from aluminum, which is lightweight, durable, and resistant to corrosion. The white coating can be a paint or a finish that provides aesthetic appeal and additional protection against the elements.

White aluminum roll is used for siding, roofing, gutters, and trim. The white color helps reflect heat, making it energy-efficient.

Specification of White Aluminum Roll:

Aluminum Alloy:	1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.
Thickness:	0.08-5.0mm
Width:	＜2650mm
Coils Core Diameter:	150mm, 405mm, 505mm, 508mm, 510mm
Coating Thickness:	PVDF>=25micron, PE>=18micron
Color Standard:	E < 2 or it is not obvious by eyeballing
Pencil Hardness:	> 2HB
Coating Adhesive:	not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
T Bend:	≤ 2 T
Boiling Point:	no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive:	surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change

Features of White Aluminum Coil Roll:

- Superior corrosion resistance

- Good electrical conductivity

- Good mechanical properties

- High formability and plasticity

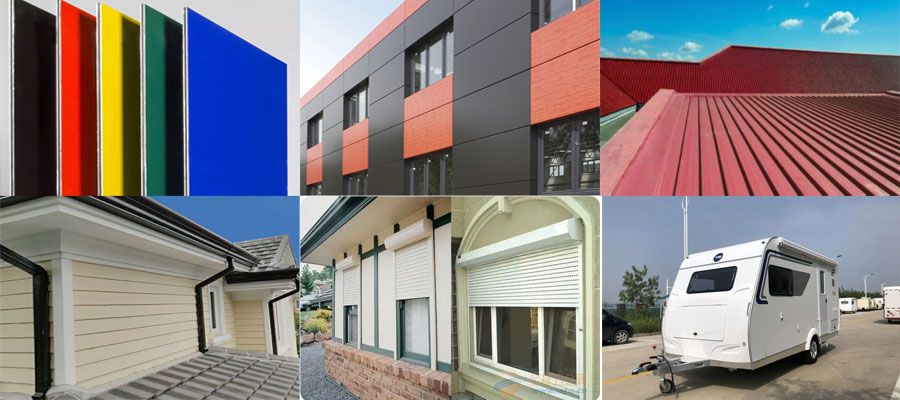

Application of White Aluminum Sheet Metal Roll:

Application	Outdoor Applications	curtain wallboard, facades, solar collector, shutter doors, aluminum composite panel, roofing,gutter
	Indoor Applications	wall cladding, ceilings, bathrooms, kitchens and balconies, blinds,shutter doors, aluminum spacer
	Advertisement and Market Applications	display platforms, signboards, fascia and shop fronts,license plate/name plate ,channel letter
	Transportation	truck and container
