PVDF Coated Aluminium

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H16, H24 etc

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PVDF, FEVE

Colors : RAL or Pantone or Customized

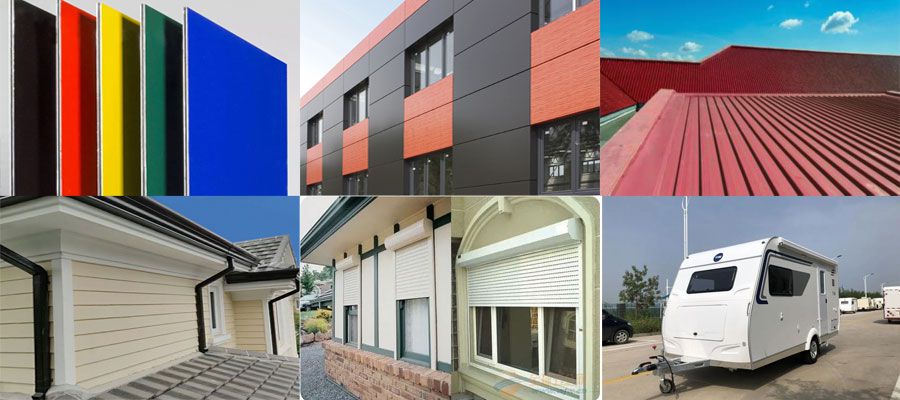

Application : Roofing, composite panel, curtain wall, siding, ceil

Detailed Description

PVDF (Polyvinylidene Fluoride) coated aluminum is a type of aluminum that has been coated with a layer of PVDF resin. This coating is known for its excellent durability, weather resistance, and aesthetic qualities, making it a popular choice in various applications, particularly in the architectural and construction industries.

PVDF and PE coated aluminum are both commonly application in the building and construction industry.

Specification of PVDF Coated Aluminium:

Aluminum Alloy:	1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.
Thickness:	0.08-5.0mm
Width:	＜2650mm
Coils Core Diameter:	150mm, 405mm, 505mm, 508mm, 510mm
Coating Thickness:	PVDF>=25micron, PE>=18micron
Color Standard:	E < 2 or it is not obvious by eyeballing
Pencil Hardness:	> 2HB
Coating Adhesive:	not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
T Bend:	≤ 2 T
Boiling Point:	no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive:	surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change

Features of PVDF Coated Aluminum:

- High Gloss;
- Wide Range Of Color ;
- Good Mechanical Processing Performance;
- Impact And Weather Resistance;
- Easy For Processing And Installation;
- Excellent Torsion Strength.
