Haomei Aluminum CO., LTD.
PVDF Coated Aluminium Sheets
Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005
Temper : H14, H16, H24 etc
Thickness : 0.18 - 1.5 mm
Width : 10 - 2650 mm
Coating : PVDF, FEVE

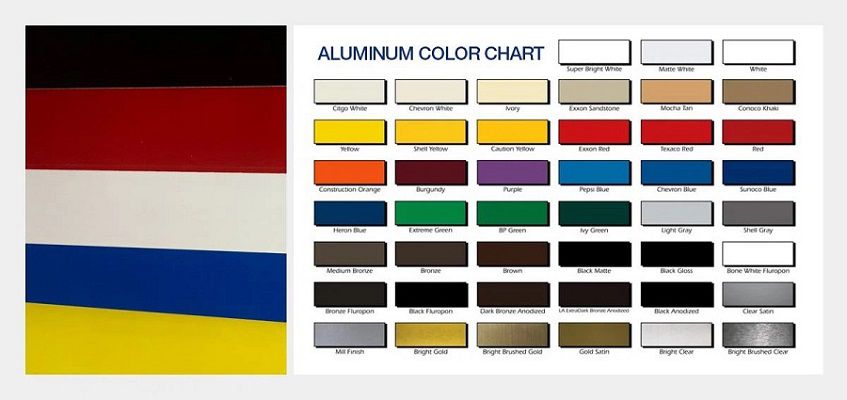

Colors : RAL or Pantone or Customized
Application : Roofing, composite panel, curtain wall, siding, ceil
PVDF coated aluminium sheet coil is widely used in aluminum honeycomb panels, aluminum ceilings, roof surfaces, and leftover materials. Its performance is very stable and it is not easily corroded.
PVDF coating on aluminum surface is a resin-based coating system with good adhesion to aluminum surface and thermally stable bonding with an unreactive chemical nature. PVDF coating offers superior weather resistance with a 15-20 year warranty for exterior use after 2-3 coats and baking.
There are several classifications of PVDF coated aluminum coil including solid, metallic, stone, and wood grain finishes. Solid finishes are the most widely used and are available in a wide range of colors. Metallic finishes give the appearance of real metal and provide a distinctive look to buildings. Stone finishes mimic natural stone, while wood grain finishes imitate the look of real wood.
Specification of PVDF Coated Aluminium Sheets:
Aluminum Alloy: | 1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc. |
Thickness: | 0.08-5.0mm |
Width: | ＜2650mm |
Coils Core Diameter: | 150mm, 405mm, 505mm, 508mm, 510mm |
Coating Thickness: | PVDF>=25micron, PE>=18micron |
Color Standard: | E < 2 or it is not obvious by eyeballing |
Pencil Hardness: | > 2HB |
Coating Adhesive: | not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993) |
T Bend: | ≤ 2 T |
Boiling Point: | no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
Corrosive: | surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change |
Features of PVDF Coated Aluminium Sheet:
- High Gloss;
- Wide Range Of Color ;
- Good Mechanical Processing Performance;
- Impact And Weather Resistance;
- Easy For Processing And Installation;
- Excellent Torsion Strength.

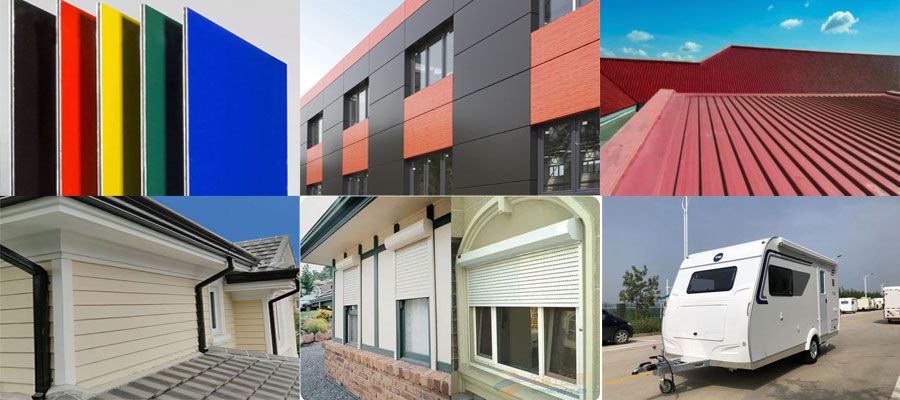

Application of PVDF Coated Aluminium Coil:
- Construction: Commonly used for roofing, wall cladding, and facade systems in both residential and commercial buildings.
- Automotive: Utilized in vehicle interiors, exteriors, and components due to their lightweight and corrosion-resistant properties.
- Appliances: Found in household appliances such as refrigerators, ovens, and washing machines.
- Signage: Ideal for producing vibrant and durable outdoor and indoor signs.
- Furniture: Used in modern furniture designs for tables, cabinets, and shelving.
- Packaging: Employed in packaging applications, particularly in food and beverage industries.

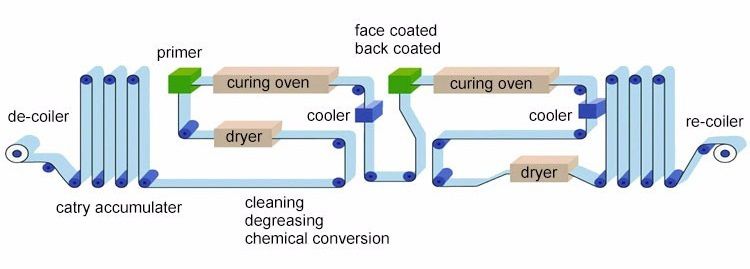

Production Process of PVDF Coated Aluminum Coil:

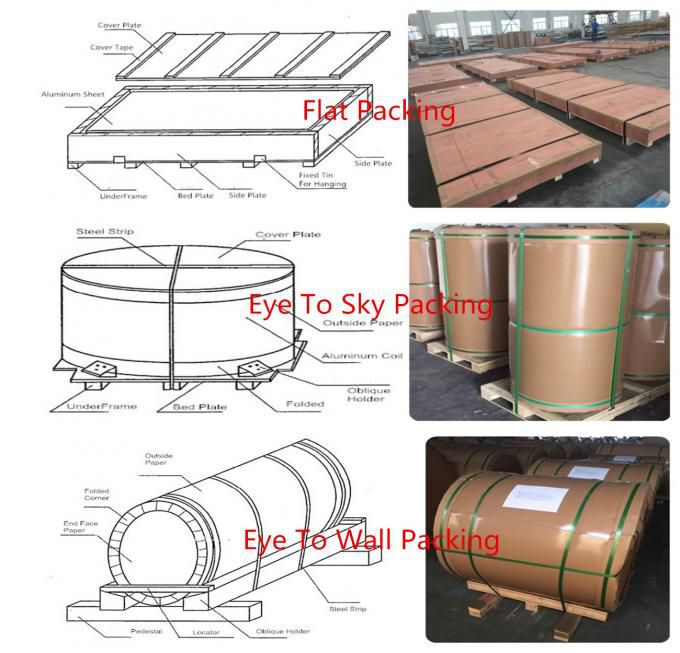

Package of PVDF Coated Aluminium Sheets:
