Pre Painted Aluminium Coil

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H16, H24 etc

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

Colors : RAL or Pantone or Customized

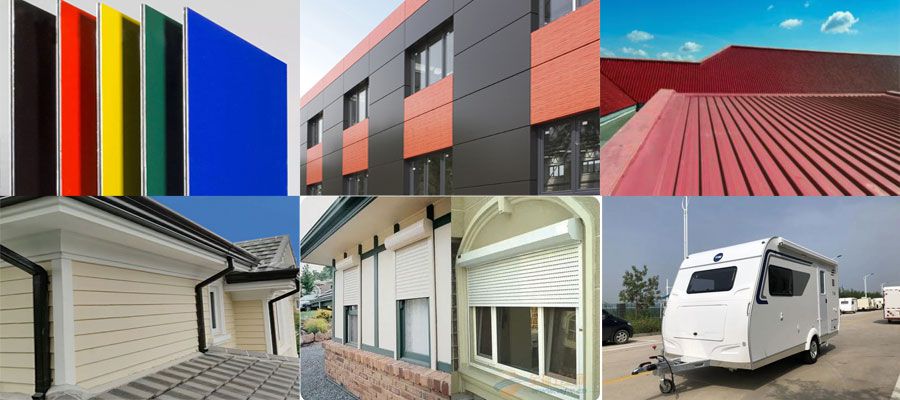

Application : Roofing, composite panel, curtain wall, ce

Detailed Description

Pre-painted aluminium coils are large rolls of aluminum that have been coated with paint before being processed into smaller sheets or formed into products.

Pre-painted aluminum coils are available in various gauges and widths. Coated in a continuous process, ensuring uniformity and consistency. Can be customized with different colors and finishes.

Specification of Pre Painted Aluminium Coil:

Alloy

Temper

Thickness

(mm)

Width

(mm)

Coil I.D. (mm)

Coating

Coating Thickness

1100 1050

1060 1070

3003 3004

3005 3105

H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, H44, H46, H48 etc.

0.2-1.2

10-1800

150/300/400/500/505/508

PE/PVDF

One-Coat: 18+/-2um

Two-Coat: 25-28um

Back coat:5-10um

Special specification could be customized.

Features of Prepainted Aluminium Coil:

- Durability: The pre-painted finish is often more durable than post-painted surfaces, as it is baked on and adheres well to the aluminum, providing resistance to scratches, corrosion, and UV degradation.

- Aesthetic Variety: Pre-painted aluminum comes in a wide range of colors and finishes, including matte, gloss, and textured surfaces, allowing for greater design flexibility.

- Cost-Effectiveness: Pre-painting reduces the need for additional painting processes after fabrication, which can save time and labor costs.

- Environmental Considerations: Many pre-painted aluminum products utilize eco-friendly coatings and processes, which can lead to lower VOC emissions compared to traditional painting methods.

- Maintenance: Pre-painted aluminum surfaces are generally easier to clean and maintain compared to uncoated or post-painted surfaces.
