Powder Coated Plate

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H24

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

Colors : RAL or Pantone or Customized

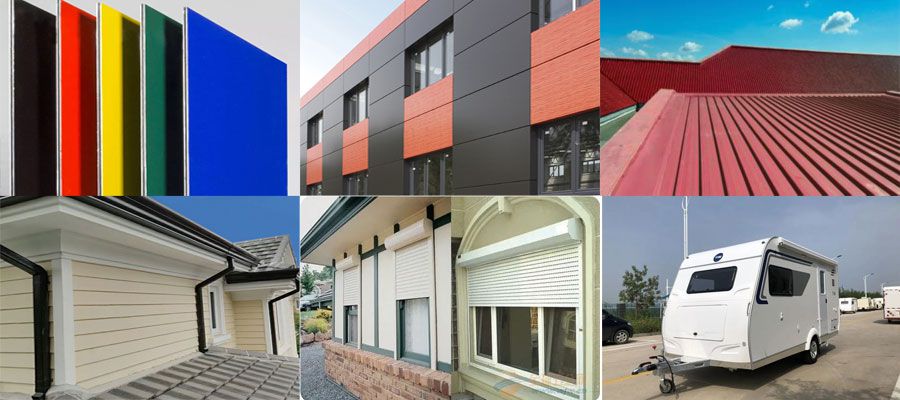

Application : roofing, curtain wall, ceiling, shutter, gutter, fa

Detailed Description

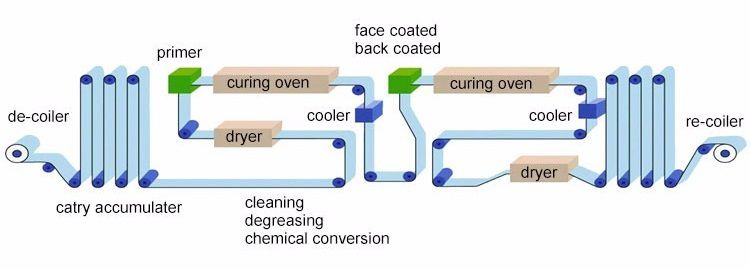

Powder-coated plates refer to metal plates that have undergone a powder coating process to enhance their appearance and durability. This finishing technique is commonly applied to various types of metal, including aluminum, steel, and other alloys.

Powder-coated aluminum plates offer a versatile and durable solution for a variety of applications, combining aesthetic flexibility with long-lasting protection.

Specification of Powder Coated Plate:

Aluminum Alloy:	1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.
Thickness:	0.08-5.0mm
Width:	＜2650mm
Coils Core Diameter:	150mm, 405mm, 505mm, 508mm, 510mm
Coating Thickness:	PVDF>=25micron, PE>=18micron
Color Standard:	E < 2 or it is not obvious by eyeballing
Pencil Hardness:	> 2HB
Coating Adhesive:	not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
T Bend:	≤ 2 T
Boiling Point:	no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive:	surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change
