Haomei Aluminum CO., LTD.
Powder Coated Aluminium Sheet
Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005
Temper : H14, H24
Thickness : 0.18 - 1.5 mm
Width : 10 - 2650 mm
Coating : PE, PVDF, HDPE, FEVE

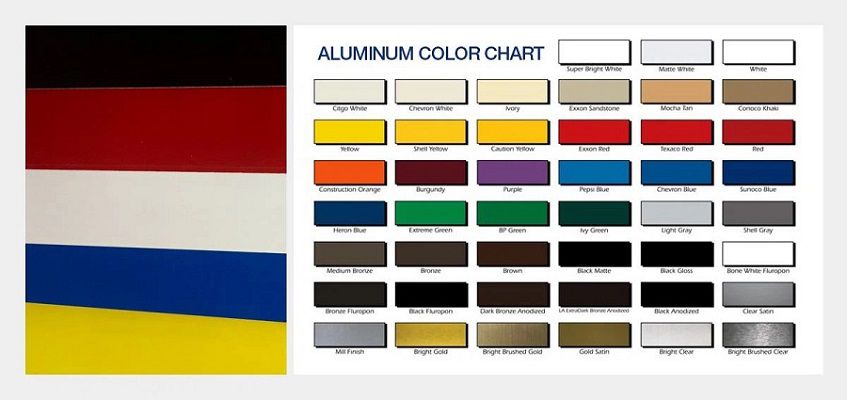

Colors : RAL or Pantone or Customized
Application : roofing, curtain wall, ceiling, shutter, gutter, fa
Powder-coated aluminium sheet product is coated with a powdered paint that is specifically formulated for the powder coating process. This powdered paint consists of a mixture of finely ground particles of pigment, resin, and additives. Unlike traditional liquid paints, powder coatings do not contain solvents, which makes them more environmentally friendly and results in a thicker, more durable finish.
Powder-coated aluminum sheet products are engineered materials that combine the lightweight and corrosion-resistant properties of aluminum with the durability and aesthetic versatility of powder coating. This innovative combination makes them ideal for a wide range of applications across various industries, including architecture, automotive, signage and furniture.
Specification of Powder Coated Aluminium Sheet:
Aluminum Alloy: | 1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc. |
Thickness: | 0.08-5.0mm |
Width: | ＜2650mm |
Coils Core Diameter: | 150mm, 405mm, 505mm, 508mm, 510mm |
Coating Thickness: | PVDF>=25micron, PE>=18micron |
Color Standard: | E < 2 or it is not obvious by eyeballing |
Pencil Hardness: | > 2HB |
Coating Adhesive: | not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993) |
T Bend: | ≤ 2 T |
Boiling Point: | no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
Corrosive: | surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change |
Features of Powder Coated Aluminium Sheets:
- Durability: Powder coating creates a hard finish that is more resistant to scratches, chipping, and fading compared to traditional paint.
- Corrosion Resistance: The coating provides a barrier against moisture and other corrosive elements, making it suitable for outdoor applications.
- Aesthetic Appeal: Powder-coated finishes are available in a wide range of colors and textures, allowing for greater design flexibility.
- Environmentally Friendly: Powder coating is generally considered more environmentally friendly than liquid paint because it emits fewer volatile organic compounds (VOCs) and can be recycled.
- Low Maintenance: Products finished with powder coating typically require less maintenance than those with traditional paint finishes.

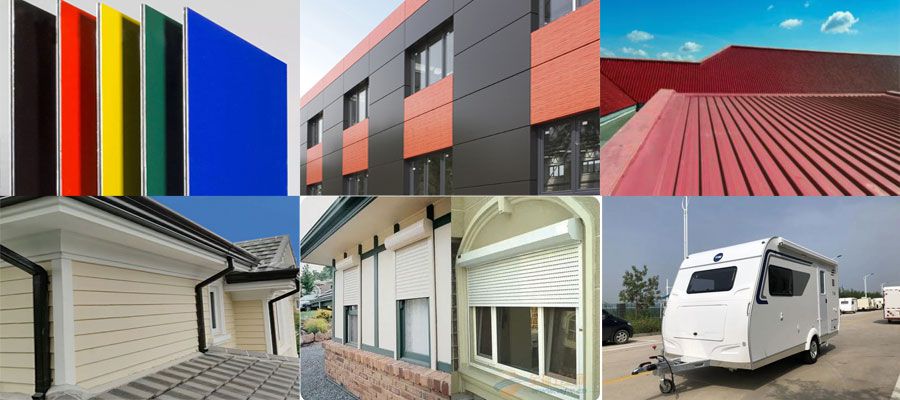

Application of Powder Coated Aluminum Sheet:
- Construction: Commonly used for roofing, wall cladding, and facade systems in both residential and commercial buildings.
- Automotive: Utilized in vehicle interiors, exteriors, and components due to their lightweight and corrosion-resistant properties.
- Appliances: Found in household appliances such as refrigerators, ovens, and washing machines.
- Signage: Ideal for producing vibrant and durable outdoor and indoor signs.
- Furniture: Used in modern furniture designs for tables, cabinets, and shelving.
- Packaging: Employed in packaging applications, particularly in food and beverage industries.

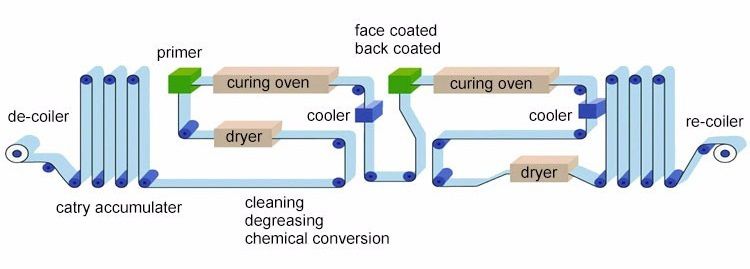

Production Process of Powder Coated Aluminum Sheets:

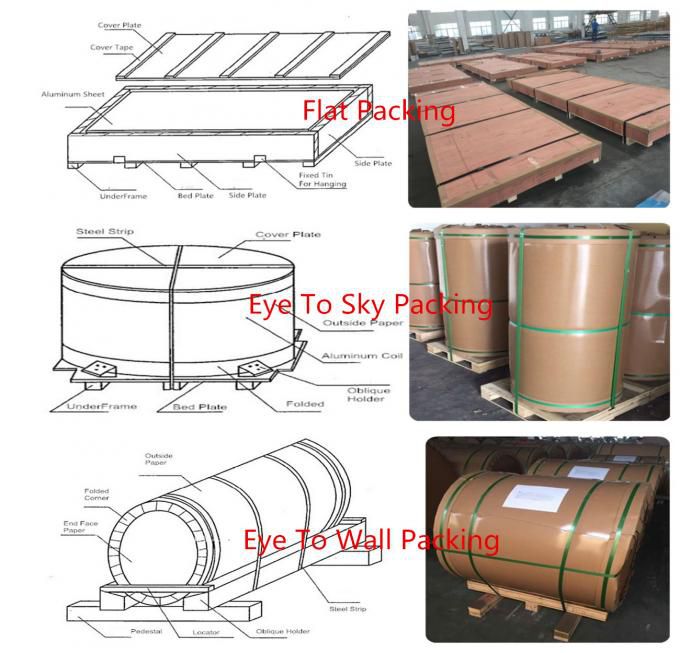

Package of Aluminium Sheet Powder Coated:
