Painted Aluminum Sheets

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H16, H24 etc

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

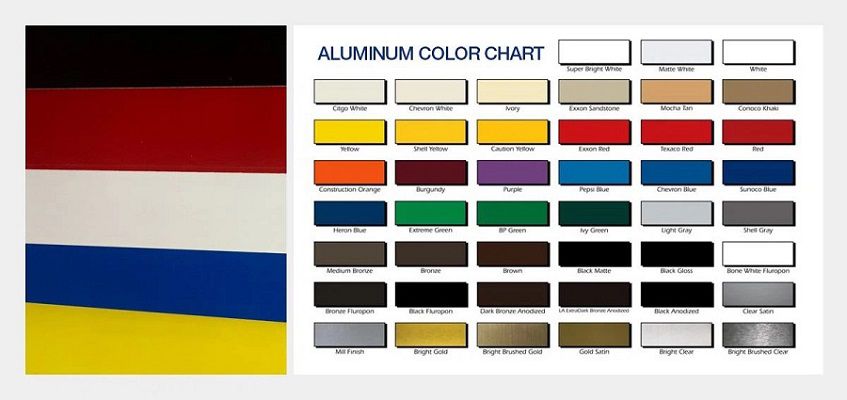

Colors : RAL or Pantone or Customized

Application : Roofing, composite panel, curtain wall, ce

Detailed Description

Painted aluminum sheets are a popular choice in various industries due to their lightweight nature, corrosion resistance and aesthetic versatility.

HAOMEI provides premium quality painted aluminum sheets available in gloss black, matte black, and white, catering to a wide range of industrial applications. Our aluminum sheets are known for their durability, aesthetic appeal, and versatility, making them ideal for various projects, from architectural designs to automotive components.

With a commitment to excellence, HAOMEI ensures that each sheet meets rigorous quality standards, delivering products that enhance both performance and visual impact. Whether you require materials for signage, facades, or custom fabrications, our painted aluminum sheets are designed to meet your specific needs and preferences.

Painted aluminum sheets are often manufactured according to industry standards, such as ASTM (American Society for Testing and Materials) or AAMA (American Architectural Manufacturers Association).

The Specification of Painted Aluminum Sheet:

Aluminum Alloy:	1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.
Thickness:	0.08-5.0mm
Width:	＜2650mm
Coils Core Diameter:	150mm, 405mm, 505mm, 508mm, 510mm
Coating Thickness:	PVDF>=25micron, PE>=18micron
Color Standard:	E < 2 or it is not obvious by eyeballing
Pencil Hardness:	> 2HB
Coating Adhesive:	not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
T Bend:	≤ 2 T
Boiling Point:	no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive:	surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change

The Features of Aluminum Painted Sheet:

Lightweight: Aluminum is significantly lighter than steel, making it easier to handle and install.
Corrosion Resistance: Aluminum naturally forms a protective oxide layer, which is enhanced by the paint, making it suitable for outdoor and harsh environments.
Durability: The paint adds an extra layer of protection against scratches, UV rays, and environmental factors.
Aesthetic Appeal: Available in a wide range of colors, finishes, and textures, painted aluminum can meet various design requirements.

The Application of Aluminium Painted Sheet:

Architectural Elements: Used for building facades, window frames, and roofing materials.
Transportation: Common in the automotive and aerospace industries for body panels and components.
Signage: Ideal for outdoor signs due to its weather resistance and vibrant color options.
Consumer Products: Found in appliances, furniture, and decorative items.
