Painted Aluminum Sheet Metal

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H16, H24 etc

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

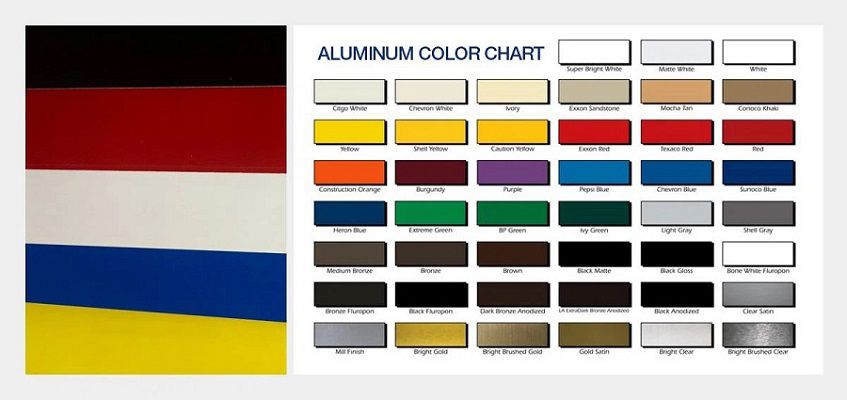

Colors : RAL or Pantone or Customized

Application : Roofing, composite panel, curtain wall, ce

Detailed Description

Painteded aluminum sheet metal is the surface coating and coloring treatment of aluminum sheet or aluminum coil. The common types are fluorocarbon (PVDF) painted aluminum sheet and polyester (PE) painted aluminum sheet.

Both types of painted aluminum sheets provide a wide range of colors and finishes, allowing for customization to meet specific design requirements. They combine the lightweight and corrosion-resistant properties of aluminum with the aesthetic advantages of paint, making them a popular choice in various industries, including construction, automotive, and consumer goods.

The Specification of Aluminum Sheet Metal Painted:

Aluminum Alloy:	1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.
Thickness:	0.08-5.0mm
Width:	＜2650mm
Coils Core Diameter:	150mm, 405mm, 505mm, 508mm, 510mm
Coating Thickness:	PVDF>=25micron, PE>=18micron
Color Standard:	E < 2 or it is not obvious by eyeballing
Pencil Hardness:	> 2HB
Coating Adhesive:	not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
T Bend:	≤ 2 T
Boiling Point:	no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive:	surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change

The Features of Painted Aluminum Sheet Metal:

- High Gloss;
- Wide Range Of Color ;
- Good Mechanical Processing Performance;
- Impact And Weather Resistance;
- Easy For Processing And Installation;
- Excellent Torsion Strength

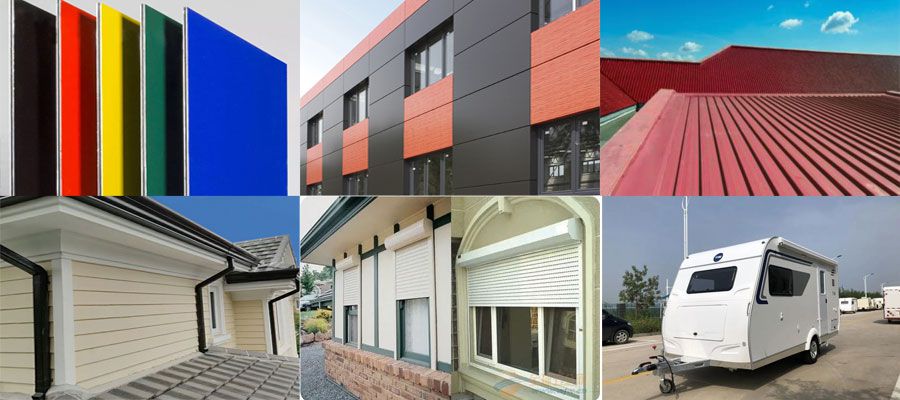

The Application of China Painted Aluminum Sheet Metal:

Application	Outdoor Applications	curtain wallboard, facades, solar collector, shutter doors, aluminum composite panel, roofing,gutter
	Indoor Applications	wall cladding, ceilings, bathrooms, kitchens and balconies, blinds,shutter doors, aluminum spacer
	Advertisement and Market Applications	display platforms, signboards, fascia and shop fronts,license plate/name plate ,channel letter
	Transportation	truck and container
