Painted Aluminum Coil

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H16, H24 etc

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

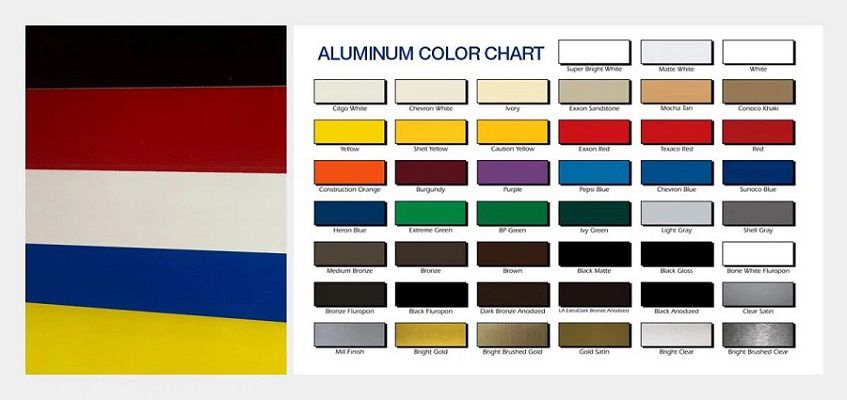

Colors : RAL or Pantone or Customized

Application : Roofing, composite panel, curtain wall, ce

Detailed Description

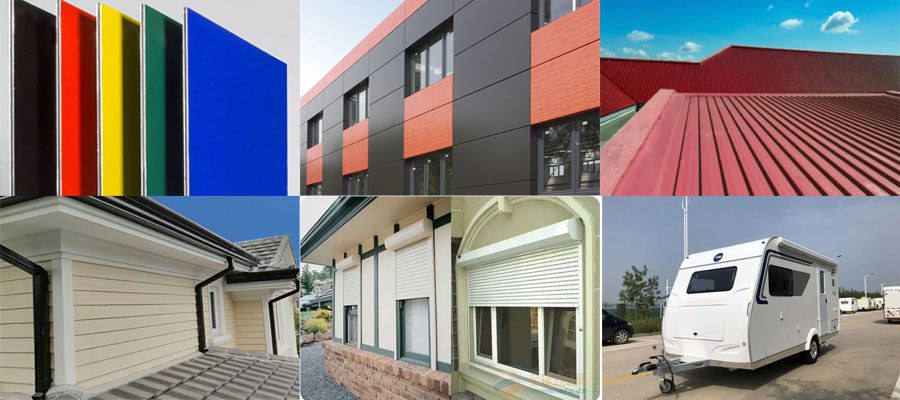

Painted aluminum coil are widely used in a variety of applications due to their lightweight, durability, and aesthetic appeal. PVDF coatings of painted aluminum coil provide a vibrant and long-lasting finish, making them ideal for architectural applications, including building facades and roofing. PE painted aluminum sheets are often used in interior applications, signage, and decorative elements where moderate durability is sufficient.

The Specification of Painted Aluminum Coil:

Aluminum Alloy:	1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.
Thickness:	0.08-5.0mm
Width:	＜2650mm
Coils Core Diameter:	150mm, 405mm, 505mm, 508mm, 510mm
Coating Thickness:	PVDF>=25micron, PE>=18micron
Color Standard:	E < 2 or it is not obvious by eyeballing
Pencil Hardness:	> 2HB
Coating Adhesive:	not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
T Bend:	≤ 2 T
Boiling Point:	no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive:	surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change

The Features of Painted Aluminium Coil:

1. Small Density: The density of aluminum is only about one-third of steel. In the case of same thickness, calculate the final price on square meter basis, they are almost same. 2. Excellent Processability: Due to moderate structural strength of aluminum, it's easy for processing and convenient to installation, which can reduce construction cost.

3. Nice Decoration: Use aluminum for external insulation decoration, it have bright overall visual. With the addition of paint coating process, that make architectural appearance much more colorful and lively.

4. Long Period Of Validity: Because of the outstanding corrosion resistance, the period of validity can reach above 25 years under normal conditions.

5. High Recovery: The recovery rate can reach 85%.
