Painted Aluminum Coil Supplier

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H16, H24 etc

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

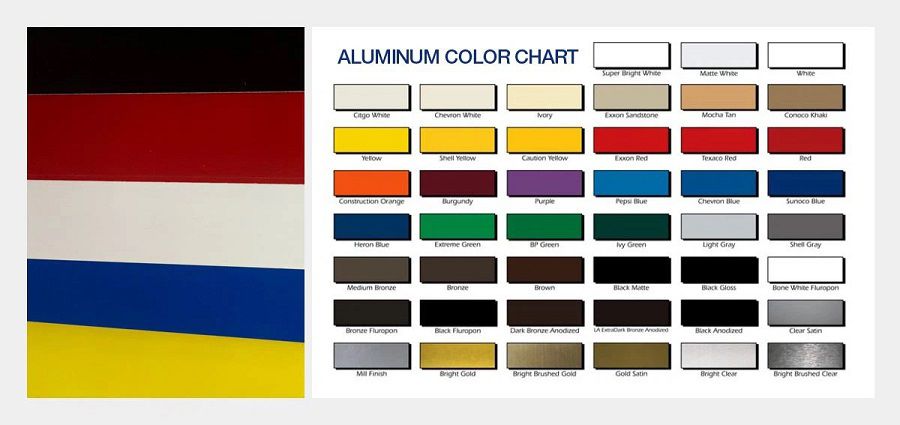

Colors : RAL or Pantone or Customized

Application : Roofing, composite panel, curtain wall, ce

Detailed Description

Haomei Aluminum is a well-known painted aluminum coil supplier based in china. We offer a variety of painted aluminum products available in various colors and finishes, suitable for applications in construction, signage, and other industries.

Haomei Aluminum is recognized for its commitment to quality and customer service, offering products that meet various industry standards. They typically provide custom solutions to meet specific customer needs, including different thicknesses, widths and paint finishes.

The Product Specification of Painted Aluminum Coil Suppliers:

Aluminum Alloy:	1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.
Thickness:	0.08-5.0mm
Width:	＜2650mm
Coils Core Diameter:	150mm, 405mm, 505mm, 508mm, 510mm
Coating Thickness:	PVDF>=25micron, PE>=18micron
Color Standard:	E < 2 or it is not obvious by eyeballing
Pencil Hardness:	> 2HB
Coating Adhesive:	not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
T Bend:	≤ 2 T
Boiling Point:	no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive:	surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change

The Product Features of Painted Aluminum Coil Manufacturers:

- Aesthetic Appeal: Available in a wide range of colors and finishes, allowing for creative design options.

- Durability: Coatings enhance the material’s resistance to corrosion, UV light, and wear, prolonging the lifespan of the aluminum.

- Low Maintenance: Color coated aluminum is generally easy to clean and maintain, making it suitable for various environments.

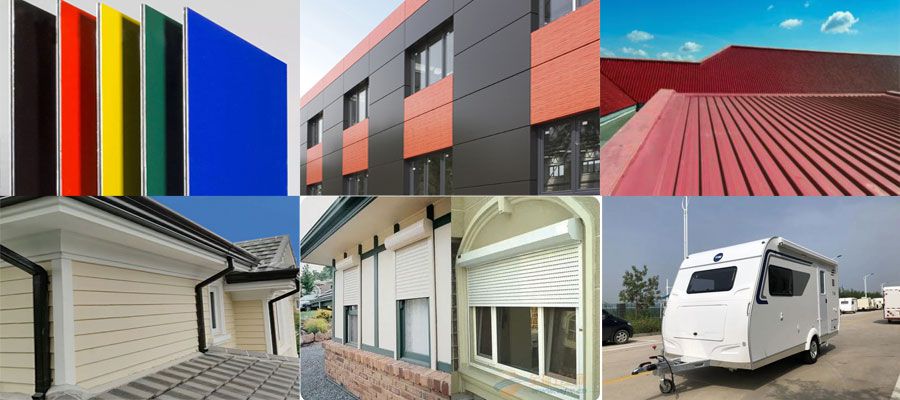

The Application of China Painted Aluminum Coil:

Application	Outdoor Applications	curtain wallboard, facades, solar collector, shutter doors, aluminum composite panel, roofing,gutter
	Indoor Applications	wall cladding, ceilings, bathrooms, kitchens and balconies, blinds,shutter doors, aluminum spacer
	Advertisement and Market Applications	display platforms, signboards, fascia and shop fronts,license plate/name plate ,channel letter
	Transportation	truck and container

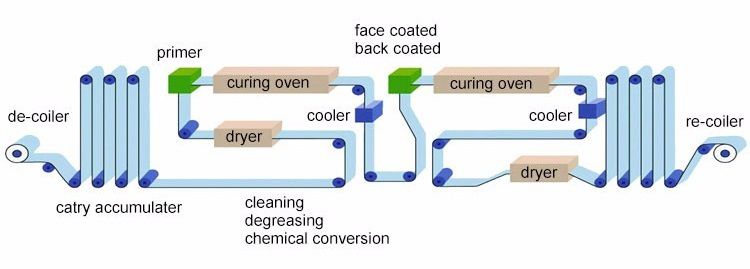

The Production Process of Painted Aluminum Coil Factory:

- Raw material coil input: The unwinder continuously unwinds the coil to ensure that the coil is continuously and stably input into the production line.

- Surface cleaning and chemical treatment: Clean the upper and lower surfaces of the aluminum coil and perform chemical pretreatment to ensure that the paint can adhere firmly.

- Painting: Use a roller coater for painting, including at least two layers of topcoat and primer.

- Paint layer curing: The newly coated coil should be fixed before contacting the next roller to avoid mutual adhesion and damage.

- Finished product output: Ensure that the production line speed is synchronized with the transfer of the finished product coil to complete the finished product output.
