Haomei Aluminum CO., LTD.
Kynar Aluminum
Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005
Temper : H14, H16, H24 etc
Thickness : 0.18 - 1.5 mm
Width : 10 - 2650 mm
Coating : PE, PVDF, HDPE, FEVE
Colors : RAL or Pantone or Customized
Application : Roofing, composite panel, curtain wall, si
Kynar coated aluminum sheet & coil is is aluminum sheet with H14 temper that is primed and coated on one side withfull strength Kynar 500.
Kynar coated aluminum sheet is for general sheet metal use in building applications, including fascia, soffits, gravel stops, copings, store fronts, and roofing.
Kynar 500 resin is polyvinylidene fluoride (PVDF) used as the base resin in liquid paint coatings.Kynar painted finishes are available in a variety of vivid colors so you can be sure your job will look good while maintaining strength and resistance to corrosion. It is factory applied to properly cleaned, pre-treated and primed metal substrates and then oven baked.
Kynar painted finishes are available in a variety of vivid colors so you can be sure your job will look good while maintaining strength and resistance to corrosion.
Specification of Kynar Aluminum:
Aluminum Alloy: | 1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc. |
Thickness: | 0.08-5.0mm |
Width: | ＜2650mm |
Coils Core Diameter: | 150mm, 405mm, 505mm, 508mm, 510mm |
Coating Thickness: | PVDF>=25micron, PE>=18micron |
Color Standard: | E < 2 or it is not obvious by eyeballing |
Pencil Hardness: | > 2HB |
Coating Adhesive: | not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993) |
T Bend: | ≤ 2 T |
Boiling Point: | no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
Corrosive: | surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change |
Features of Kynar Coated Aluminum:
- Aesthetic Appeal: Available in a wide range of colors and finishes, allowing for creative design options.
- Durability: Coatings enhance the material’s resistance to corrosion, UV light, and wear, prolonging the lifespan of the aluminum.
- Low Maintenance: Color coated aluminum is generally easy to clean and maintain, making it suitable for various environments.

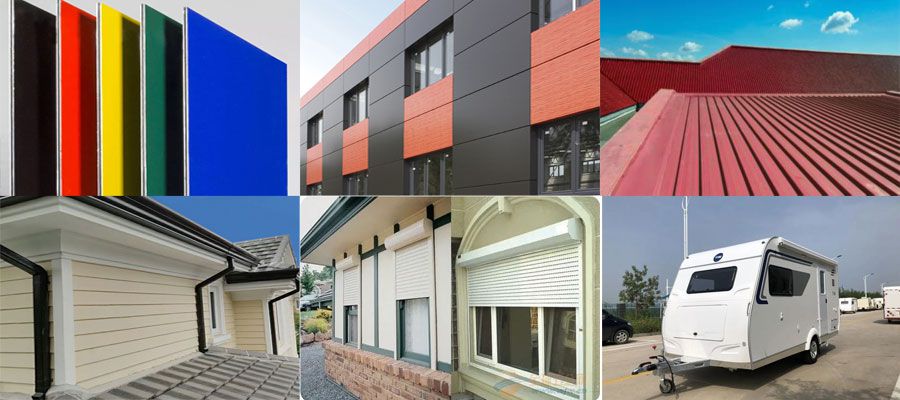

Application of Kynar Finish Aluminum:
- Construction: Used for siding, roofing, gutters, and aluminum facades.
- Signage: Ideal for outdoor and indoor signage due to their vibrant colors and weather resistance.
- Home Appliances: Commonly found in the manufacturing of appliances like refrigerators and air conditioners.
- Automotive: Used in certain automotive parts for both functional and aesthetic purposes.
- Furniture: Employed in the design of modern furniture pieces.

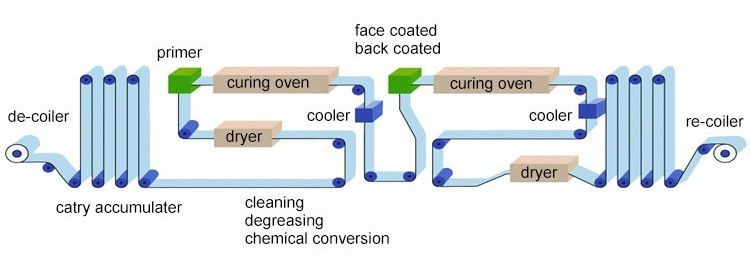

Production Process of Kynar Sheet Metal:

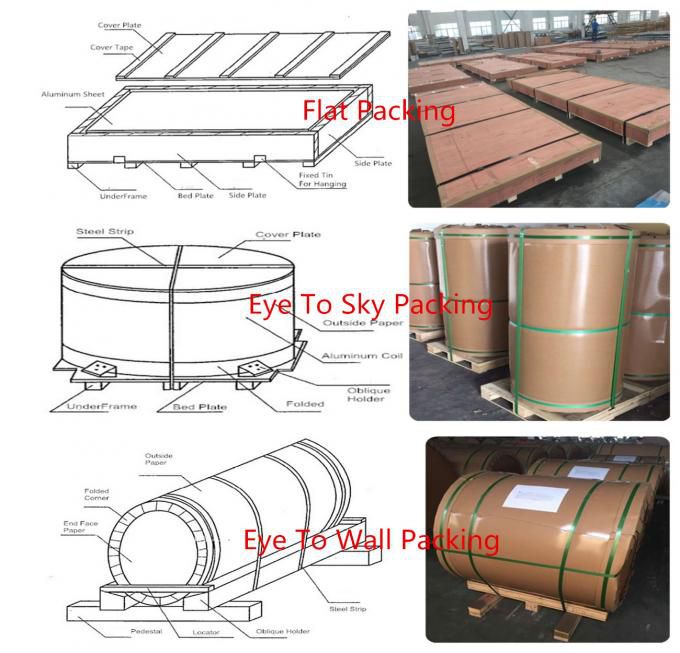

Package of Kynar Painted Aluminum:
