Haomei Aluminum CO., LTD.

Painted Aluminum

Color Coated Aluminum

Roofing Sheets

Powder Coated Aluminum

Wood Coated Aluminium

Colored Diamond Plate

Grey Aluminium Sheet

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005, 5052

Temper : H14, H16, H24 etc

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

Colors : Grey

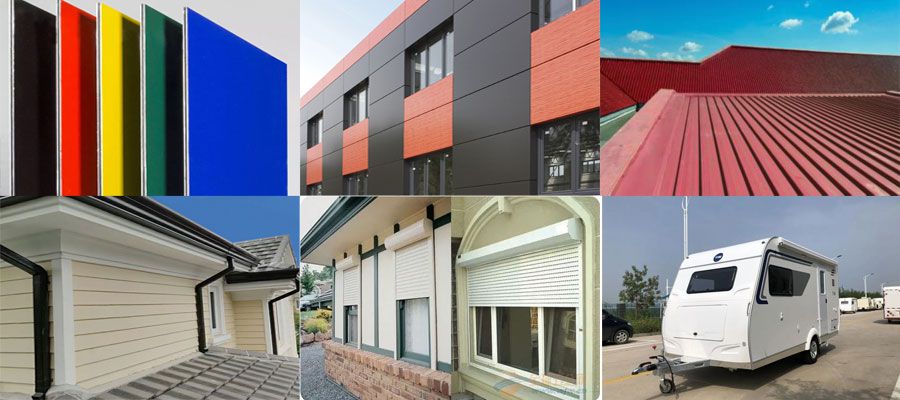

Application : Roofing, composite panel, trailer, shutter, gutter

Detailed Description

Grey aluminium sheet is a common building and industrial material, widely used in exterior walls, roofs, interior decoration, furniture, transportation and other fields. Aluminum sheet is favored for its light weight, corrosion resistance and good processing performance. The color of grey aluminum sheet is usually compatible with a variety of design styles, providing a modern and simple beauty.

Grey aluminium has multiple corresponding color numbers in the RAL color card. The following are some common gray RAL color numbers and their names:

RAL 7000 - Squirrel Grey

RAL 7001 - Silver Grey

RAL 7002 - Olive Grey

RAL 7003 - Olive Drab

RAL 7010 - Tar Grey

RAL 7011 - Iron Grey

RAL 7030 - Stone Grey

RAL 7031 - Blue Grey

RAL 7032 - Pebble Grey

RAL 7033 - Cement Grey

RAL 7034 - Pastel Grey

RAL 7040 - Window Grey

RAL 7042 - Traffic Grey

RAL 7043 - Traffic Grey Grey (traffic grey)

Specification of Grey Aluminium Sheet:

Alloy

Temper

Thickness

(mm)

Width

(mm)

Coil I.D. (mm)

Coating

Coating Thickness

1100 1050

1060 1070

3003 3004

3005 3105

H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, H44, H46, H48 etc.

0.2-1.2

10-1800

150/300/400/500/505/508

PE/PVDF

One-Coat: 18+/-2um

Two-Coat: 25-28um

Back coat:5-10um

Special specification could be customized.

Features of Grey Aluminium:

1. Small Density: The density of aluminum is only about one-third of steel. In the case of same thickness, calculate the final price on square meter basis, they are almost same.

2. Excellent Processability: Due to moderate structural strength of aluminum, it's easy for processing and convenient to installation, which can reduce construction cost.

3. Nice Decoration: Use aluminum for external insulation decoration, it have bright overall visual. With the addition of paint coating process, that make architectural appearance much more colorful and lively.

4. Long Period Of Validity: Because of the outstanding corrosion resistance, the period of validity can reach above 25 years under normal conditions.

5. High Recovery: The recovery rate can reach 85%.
