Green/Pink/Yellow/Orange Diamond Plate
Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005
Temper : H14, H24
Thickness : 0.08 - 5 mm
Width : 100 - 2650 mm
Coating : PE, PVDF, HDPE, FEVE
Colors : RAL or Pantone or Customized
Application : Decoration, wall, door, floor

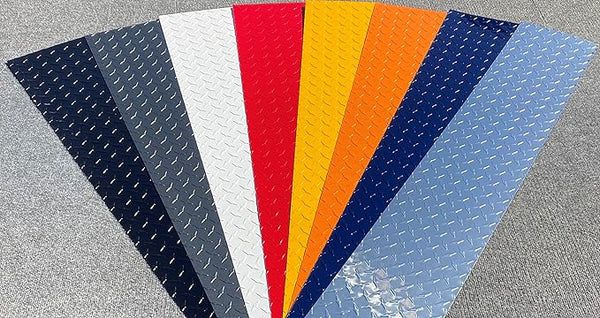

HaomeiAluminum offer high quality aluminum diamond plate in many colors including black, white, red, blue, green, yellow, gray, orange and so on.
Colored aluminum diamond plate is a type of aluminum sheet that features a raised diamond pattern and is available in various colors. This material combines the durability and lightweight properties of aluminum with a vibrant, visually appealing finish.
With aesthetic appeal, durability, lightweight nature, and safety features make it suitable for a wide range of applications, from industrial to decorative uses.
The Specification of Colored Diamond Plate:
Alloy:
Typically made from 1060, 3003, 5052 or 6061 aluminum alloys, which offer a good balance of strength and corrosion resistance.
Thickness:
Ranges from 0.025 inches (0.635 mm) to 0.125 inches (3.175 mm) or more, depending on the application. Thicker plates provide greater strength and durability.
Sheet Size:
Often available in standard sizes such as 4' x 8', 4' x 10', or custom dimensions depending on the supplier and project requirements.
Diamond Pattern:
The raised diamond pattern typically has a height of about 0.1 inches (2.54 mm) and varies in size and spacing depending on the design specifications.
Weight per Square Foot:
The weight of aluminum diamond plate can vary based on thickness; for example, a 0.125-inch thick sheet weighs approximately 3.0-3.5 pounds per square foot.
Types of Finish:
Anodized: A protective layer that enhances corrosion resistance and surface hardness.
Powder Coated: Offers a durable finish in various colors, including black, and provides UV resistance.
Painted: A painted finish can also be used for aesthetic purposes.
Mechanical Properties:
Tensile Strength: Generally ranges from 31,000 to 40,000 psi (pounds per square inch) depending on the alloy used.
Yield Strength: Typically around 20,000 to 30,000 psi.
The Features of Coated Diamond Plate:
Aesthetic Appeal:
The vibrant colors and unique diamond pattern make it an attractive choice for decorative applications, adding a modern touch to various projects.
Safety:
Provides slip-resistant properties, making it ideal for flooring, ramps, and other surfaces where traction is important.
Versatility:
Can be used in a wide range of applications, from industrial settings to residential decor.
Low Maintenance:
Easy to clean and maintain, typically requiring only mild soap and water for regular upkeep.
Customization:
Available in various sizes and thicknesses, allowing for customization to meet specific project requirements.

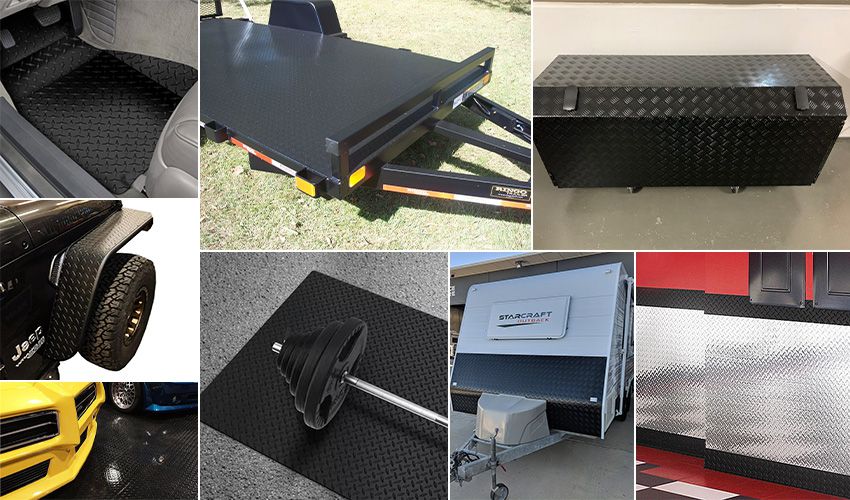

The Application of Colored Diamond Plate:
Industrial Use:
Commonly used in warehouses, factories, and manufacturing plants for flooring, wall coverings, and toolboxes.
Automotive:
Often used in custom truck beds, trailers, and toolboxes, providing both protection and style.
Decorative Projects:
Ideal for interior design projects, including accent walls, furniture, and displays, where a bold visual statement is desired.
Commercial Settings:
Used in retail spaces, restaurants, and bars for decor and functional surfaces.
Outdoor Use:
Suitable for outdoor structures like decks, ramps, and signage due to its weather-resistant properties.
