Colour Coated Sheet

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H24, etc

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coatingc : PE, PVDF, HDPE, FEVE

Colors : RAL or Pantone or Customized

Application : Roofing, curtain wall, ceiling, shutter, gutt

Detailed Description

Color coated sheets come in a wide range of colors, textures, and finishes, which can be applied in many fields. It is lightweight, attractive, and good at conducting heat. Colour coated metal sheets are the most economical choice for various industrial projects.

Specification of Colour Coated Sheet:

Alloy

Temper

Thickness

(mm)

Width

(mm)

Coil I.D. (mm)

Coating

Coating Thickness

1100 1050

1060 1070

3003 3004

3005 3105

H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, H44, H46, H48 etc.

0.2-1.2

10-1800

150/300/400/500/505/508

PE/PVDF

One-Coat: 18+/-2um

Two-Coat: 25-28um

Back coat:5-10um

Special specification could be customized.

Features of Color Coated Sheet:

- High Gloss;
- Wide Range Of Color ;
- Good Mechanical Processing Performance;
- Impact And Weather Resistance;
- Easy For Processing And Installation;
- Excellent Torsion Strength.

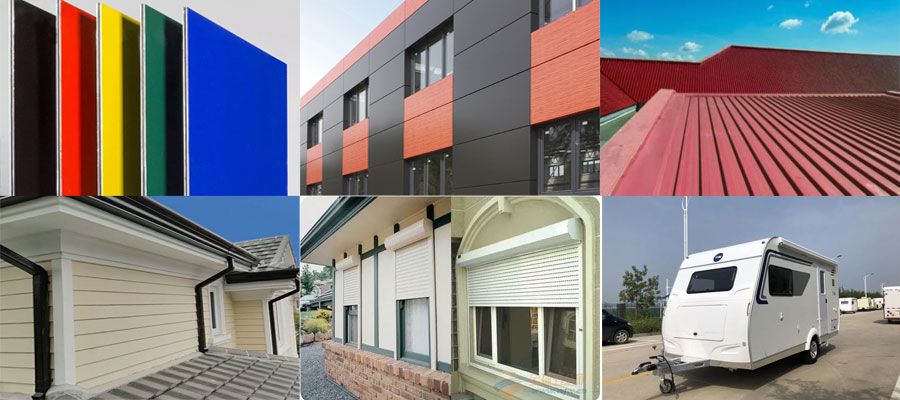

Application of Colour Coated Metal Sheet:

- Architectural decoration: used to make various special-shaped materials, panels, exterior panels and curtain wall panels, etc.

- Automobile manufacturing: used to make automobile body panels, interior panels, door panels, engine hoods and other parts.

- Medical equipment: used as packaging materials for medical instruments and equipment, as well as operating room isolation materials, medical consumables, etc.

- Home appliance manufacturing: used to make the shell and internal materials of household appliances such as televisions, refrigerators, and air conditioners.
