Colour Aluminium Sheet

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H24

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

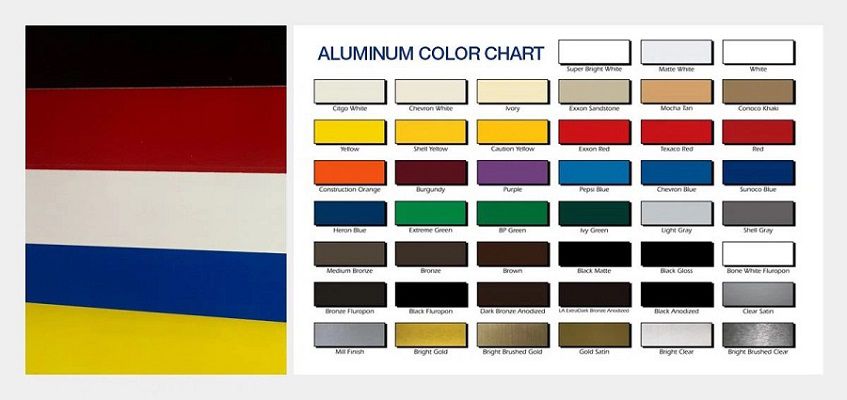

Colors : RAL or Pantone or Customized

Application : Roofing, composite panel, trailer, shutter, gutter,

Detailed Description

Colour aluminium sheets are aluminum sheets that have been coated or finished with a specific color. With the characteristics of light weight and high strength, it makes the color aluminum sheets have better load bearing capacity and durability while maintaining the beauty.

Specification of Colour Aluminium Sheet:

Alloy	1100 3003 5005 1050 1060 1070 3102 8011 3A21 3105 8079
Aluminum thickness	0.1mm-3mm
Aluminum max Width	2200mm standard width: 1240mm special width such as 1300mm, 1520mm, 1570mm,1595mm are also available
Coil’s standard diameter	interior diameter: 150mm, 405mm, 505mm
Coating finish	PE, PVDF, PLOYESTER, ACRYLIC ACID
MOQ	5 tons per size
Gloss	meet the customer’s requirement
Total coating thickness	PVDF coating: more than 25 microns
Coating adhesive	no lower than first grade
Impact resistance	no cracking and peeling (50kg/cm, ASTMD-2794:1993)

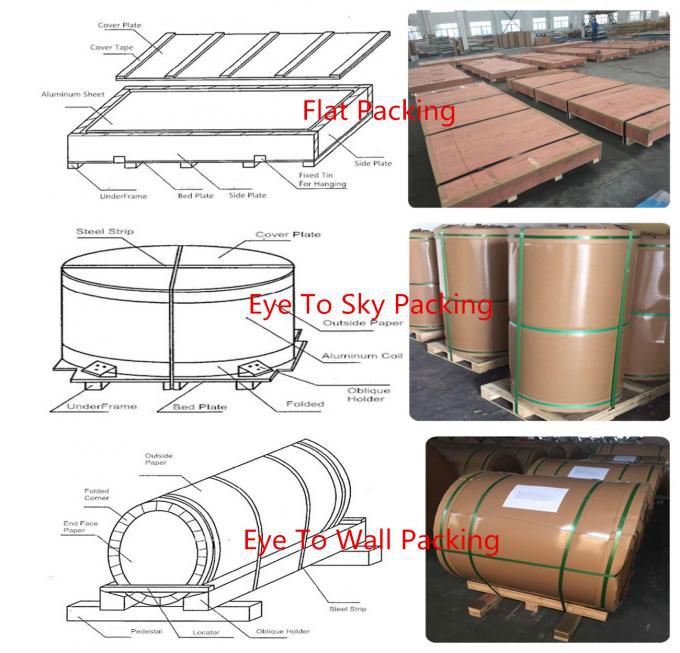

Outer packing	export standard, wooden pallet

Features of Aluminium Color Sheets:

- High Gloss;
- Wide Range Of Color ;
- Good Mechanical Processing Performance;
- Impact And Weather Resistance;
- Easy For Processing And Installation;
- Excellent Torsion Strength.

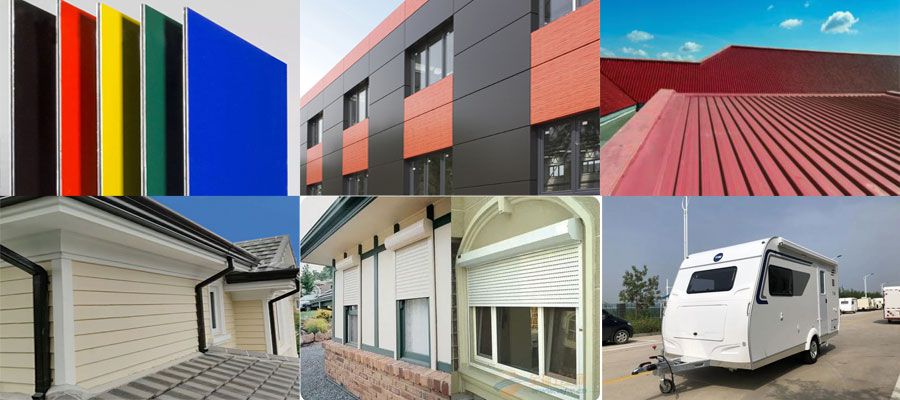

Application of Color Aluminum Sheet Metal:

- Construction: Building facades, roofing, and architectural panels.

- Automotive: Trim and body panels.

- Appliances: Refrigerator and washing machine exteriors.

- Signage: Outdoor signs and displays.

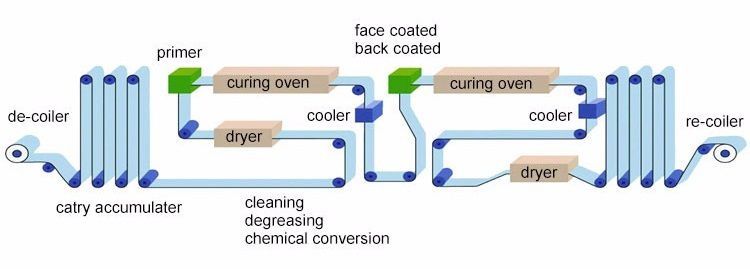

Production Process of Color Aluminum Sheet:

- Raw material coil input: The unwinder continuously unwinds the coil to ensure that the coil is continuously and stably input into the production line.

- Surface cleaning and chemical treatment: Clean the upper and lower surfaces of the aluminum coil and perform chemical pretreatment to ensure that the paint can adhere firmly.

- Painting: Use a roller coater for painting, including at least two layers of topcoat and primer.

- Paint layer curing: The newly coated coil should be fixed before contacting the next roller to avoid mutual adhesion and damage.

- Finished product output: Ensure that the production line speed is synchronized with the transfer of the finished product coil to complete the finished product output.
