Colored Sheet Metal

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H24, etc.

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

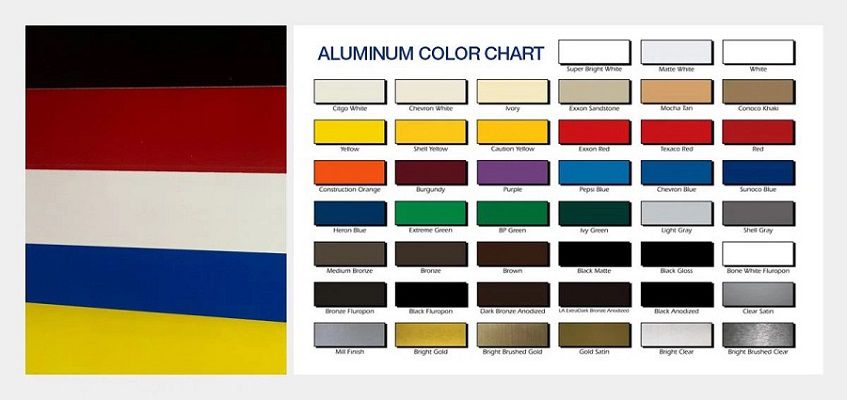

Colors : RAL or Pantone or Customized

Application : Roofing, composite panel, trailer, shutter, gu

Detailed Description

Colored sheet metal is characterized by its aesthetic appeal, durability, material properties, various coating techniques, and broad applicability in numerous industries.

Specification of Colored Sheet Metal:

Aluminum Alloy:	1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.
Thickness:	0.08-5.0mm
Width:	＜2650mm
Coils Core Diameter:	150mm, 405mm, 505mm, 508mm, 510mm
Coating Thickness:	PVDF>=25micron, PE>=18micron
Color Standard:	E < 2 or it is not obvious by eyeballing
Pencil Hardness:	> 2HB
Coating Adhesive:	not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
T Bend:	≤ 2 T
Boiling Point:	no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive:	surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change

Features of Coloured Sheet Metal:

- Aesthetic Appeal: Available in a wide range of colors and finishes, allowing for creative design options.

- Durability: Coatings enhance the material’s resistance to corrosion, UV light, and wear, prolonging the lifespan of the aluminum.

- Low Maintenance: Colored aluminum sheet metal is generally easy to clean and maintain, making it suitable for various environments.

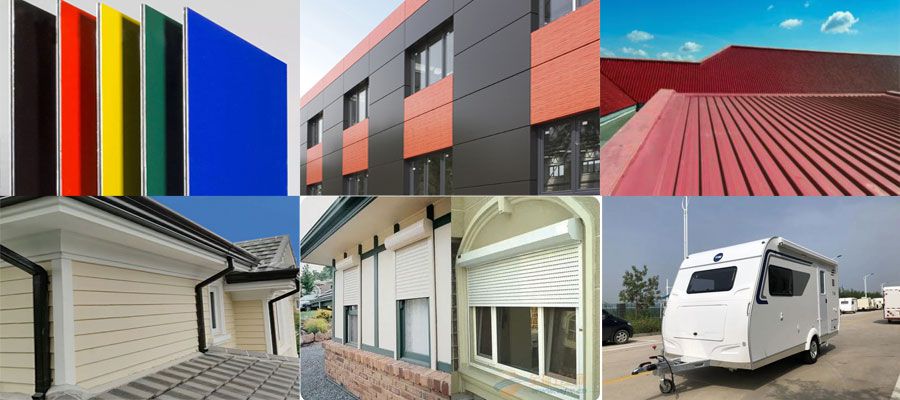

Application of Colored Plain Sheet:

Application	Outdoor Applications	curtain wallboard, facades, solar collector, shutter doors, aluminum composite panel, roofing,gutter
	Indoor Applications	wall cladding, ceilings, bathrooms, kitchens and balconies, blinds,shutter doors, aluminum spacer
	Advertisement and Market Applications	display platforms, signboards, fascia and shop fronts,license plate/name plate ,channel letter
	Transportation	truck and container
