Haomei Aluminum CO., LTD.
Colored Aluminium Sheets
Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005
Temper : H14, H24, etc.
Thickness : 0.18 - 1.5 mm
Width : 10 - 2650 mm
Coating : PE, PVDF, HDPE, FEVE
Colors : RAL or Pantone or Customized
Application : Roofing, composite panel, trailer, shutter, gu
Colored aluminium sheet is characterized by its lightweight nature, aesthetic versatility, durability, corrosion resistance, and ease of fabrication. Its wide range of applications across various industries makes it a popular choice for both functional and decorative purposes.
The surface of colored aluminum sheet is coated with special fluorocarbon coating or polyester coating, which has the characteristics of bright color, anticorrosion and weather resistance, and not easy to fade. At the same time, the colored aluminum sheet metal also has light weight, high strength, easy processing and other characteristics, is widely used in building decoration, electronic products, automobile manufacturing and other industries.
Specification of Colored Aluminium Sheets:
Aluminum Alloy: | 1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc. |
Thickness: | 0.08-5.0mm |
Width: | ＜2650mm |
Coils Core Diameter: | 150mm, 405mm, 505mm, 508mm, 510mm |
Coating Thickness: | PVDF>=25micron, PE>=18micron |
Color Standard: | E < 2 or it is not obvious by eyeballing |
Pencil Hardness: | > 2HB |
Coating Adhesive: | not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993) |
T Bend: | ≤ 2 T |
Boiling Point: | no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
Corrosive: | surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change |
Features of Coloured Aluminium Sheet:
- High Gloss;
- Wide Range Of Color ;
- Good Mechanical Processing Performance;
- Impact And Weather Resistance;
- Easy For Processing And Installation;
- Excellent Torsion Strength.

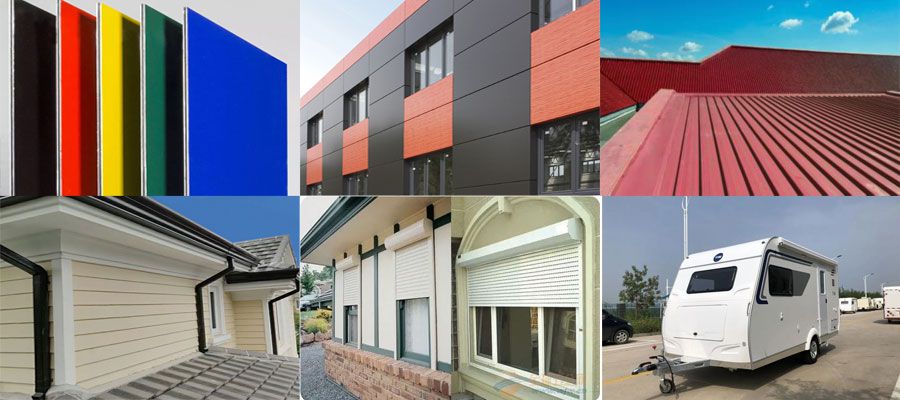

Application of Colored Aluminum Sheet Metal:
- Construction: Commonly used for roofing, wall cladding, and facade systems in both residential and commercial buildings.
- Automotive: Utilized in vehicle interiors, exteriors, and components due to their lightweight and corrosion-resistant properties.
- Appliances: Found in household appliances such as refrigerators, ovens, and washing machines.
- Signage: Ideal for producing vibrant and durable outdoor and indoor signs.
- Furniture: Used in modern furniture designs for tables, cabinets, and shelving.
- Packaging: Employed in packaging applications, particularly in food and beverage industries.

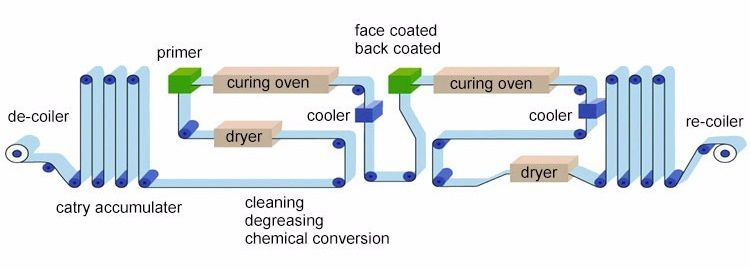

Production Process of Colored Aluminum Sheet:

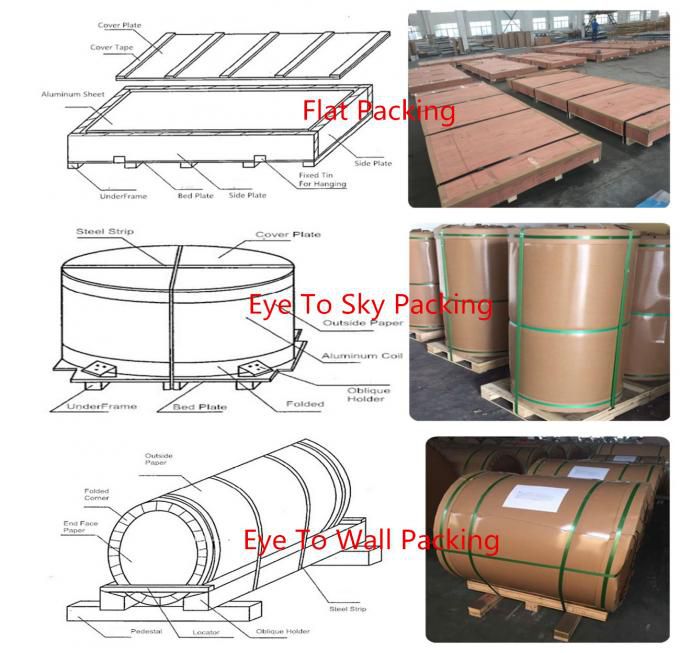

Package of Colored Aluminium Sheets:
