Haomei Aluminum CO., LTD.
Color Stucco Aluminium Sheet
Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005
Temper : H14, H24, etc
Thickness : 0.18 - 1.5 mm
Width : 10 - 2650 mm
Coating : PE, PVDF, HDPE, FEVE
Colors : RAL or Pantone or Customized
Application : Roofing, composite panel, curtain wall, ceilin
Color coated stucco aluminum sheets are versatile materials used in various construction and design applications. They are known for their aesthetic appeal, durability, and lightweight nature.
Color coated embossed aluminum sheets come in a variety of patterns and textures that enhance their aesthetic appeal and functionality. The stucco embossing provides a distinct look that can be used in various applications, from architectural cladding to interior design.
The Specification of Color Stucco Aluminium Sheet:
Aluminum Alloy:
commonly 1060, 3003, 1100, or 5005 series.
Thickness:
Typically ranges from 0.2 mm to 1.5 mm, depending on the application.

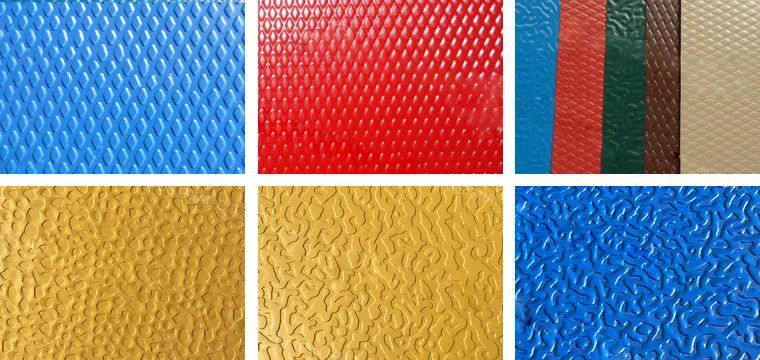

Embossing Pattern:
Stucco embossed pattern like orange peel, diamond pattern, hammered pattern, which provides texture and helps hide surface imperfections. Height of embossing is usually around 0.5 mm to 1.0 mm, depending on the specific design.
Surface Treatment:
Coating Type: Polyester, PVDF (polyvinylidene fluoride), or epoxy-based coatings.
Coating Thickness: Typically 25 microns to 50 microns for durability and weather resistance.
Color: Available in a wide range of colors; color matching may be specified (e.g., RAL or Pantone standards).
Mechanical Properties:
Tensile Strength: Minimum tensile strength typically around 140-200 MPa.
Yield Strength: Minimum yield strength usually around 70-130 MPa.
Elongation: Typically around 3% to 10%, depending on thickness and alloy.
Physical Properties:
Weight: Approximately 2.7 grams per cubic centimeter (g/cm³) for aluminum.
Thermal Conductivity: Approximately 205 W/mK, although this can vary with alloy and coating.
Finish:
Gloss Level: Can vary from matte to high gloss, depending on the coating.
Texture: Stucco embossed finish for decorative and functional purposes.
Dimensions:
Sheet Size: Common sheet sizes include 4' x 8', 4' x 10', or custom sizes based on project requirements.
Tolerance: Thickness and dimension tolerances should adhere to industry standards (e.g., ±0.1 mm for thickness).
The Features of Color Stucco Aluminum Sheet:
Color Coating:
The aluminum sheets are coated with a durable paint that comes in a wide range of colors, allowing for customization to match architectural designs and preferences.
Stucco Embossing:
The surface of the aluminum is embossed with a stucco pattern, which adds texture and helps to hide scratches and minor dents. This design also enhances the visual appeal of the material.
Lightweight:
Aluminum is a lightweight material, making it easy to handle and install compared to heavier materials like steel.
Durability:
Aluminum is resistant to rust and corrosion, especially when coated. This makes it suitable for both indoor and outdoor applications.
Low Maintenance:
The coated surface is easy to clean and maintain, requiring minimal upkeep over time.
Thermal Efficiency:
Aluminum sheets can provide good insulation when used correctly, contributing to energy efficiency in buildings.
The Application of Color Embossed Aluminium Sheet:
Exterior Cladding:
Used for the exterior walls of buildings, providing both aesthetic appeal and protection from the elements.
Interior Design:
Suitable for interior walls, ceilings, and decorative features.
Signage:
Commonly used in signage due to its lightweight nature and ability to hold vibrant colors.
Roofing:
Sometimes used in roofing applications for its durability and weather resistance.
Industrial Applications:
Utilized in various industrial settings where a lightweight and durable material is needed.
