Coated Aluminum Strip

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H24, etc

Thickness : 0.18 - 1.5 mm

Width : 100 - 800 mm

Colors : RAL or Pantone or Customized

Application : Roofing, composite panel, curtain wall, ceiling, shutter, gutter, facades, cha

Detailed Description

Color coated aluminum strips are aluminum strips that have been coated with a layer of paint or other coloring material. This process enhances the aesthetic appeal of the aluminum while also providing additional protection against corrosion and environmental factors.

The Specification of Coated Aluminum Strip:

Aluminum Alloy:	1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.
Thickness:	0.08-5.0mm
Width:	＜2650mm
Coils Core Diameter:	150mm, 405mm, 505mm, 508mm, 510mm
Coating Thickness:	PVDF>=25micron, PE>=18micron
Color Standard:	E < 2 or it is not obvious by eyeballing
Pencil Hardness:	> 2HB
Coating Adhesive:	not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
T Bend:	≤ 2 T
Boiling Point:	no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive:	surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change

The Features of Color Coated Aluminum Strip:

Aesthetic Variety: Available in a wide range of colors and finishes, including matte, glossy, and textured.

Durability: The coating adds a layer of protection against UV rays, moisture, and scratches.

Lightweight: Aluminum is lighter than many other materials, making it easier to handle and install.

Eco-Friendly: Aluminum is recyclable, and many coatings are designed to be environmentally friendly.

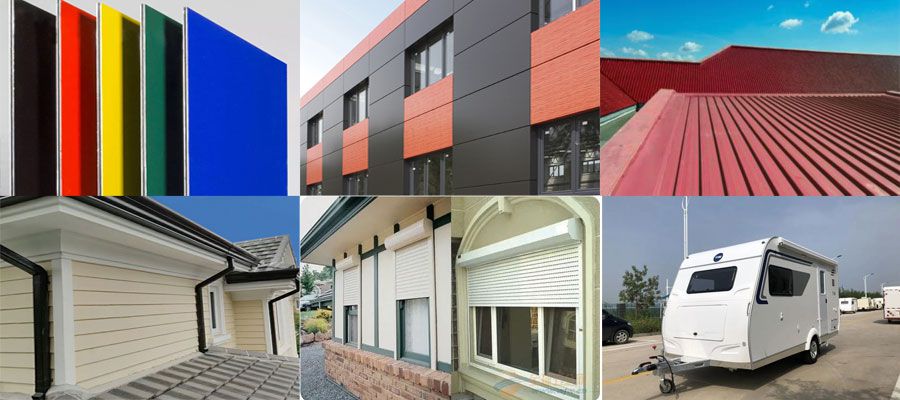

The Application of Coated Aluminum Strip:

Construction: Used in roofing, siding, and decorative facades.

Automotive: Employed in various parts and trim elements.

Electrical: Utilized in electrical enclosures and components.

Consumer Goods: Found in appliances, furniture, and other products.

Signage: Commonly used for outdoor signage due to weather resistance.

The Production Process of Colored Aluminum Strip:

PVDF Coating: Polyvinylidene fluoride coatings are known for their durability and resistance to fading, making them ideal for outdoor applications.

PE Coating: Polyester coatings offer good color retention and are often used for interior applications.
