Haomei Aluminum CO., LTD.

Brown Aluminum

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005, 5052

Temper : H14, H16, H24 etc

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

Colors : Brown

Application : Roofing, composite panel, curtain wall, siding, ceiling, sh

Detailed Description

Brown aluminum usually correspond to RAL 8017 (chocolate brown), RAL 8004 (chestnut) or RAL 8022 (Black Brown).

Brown aluminium is a color-coated aluminum sheet coil product with aluminum alloy as the base material, which is treated by special process and covered with fluorocarbon/polyester coating on the surface. Its appearance presents a brown texture, giving people a noble and elegant feeling.

Specification of Brown Aluminum:

Aluminum Alloy:

1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.

Thickness:

0.08-5.0mm

Width:

<2650mm

Coils Core Diameter:

150mm, 405mm, 505mm, 508mm, 510mm

Coating Thickness:

PVDF>=25micron, PE>=18micron

Color Standard:

E < 2 or it is not obvious by eyeballing

Pencil Hardness:

> 2HB

Coating Adhesive:

not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)

T Bend:

≤ 2 T

Boiling Point:

no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)

Corrosive:

surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change

Features of Brown Aluminium:

- Superior corrosion resistance

- Good electrical conductivity

- Good mechanical properties

- High formability and plasticity

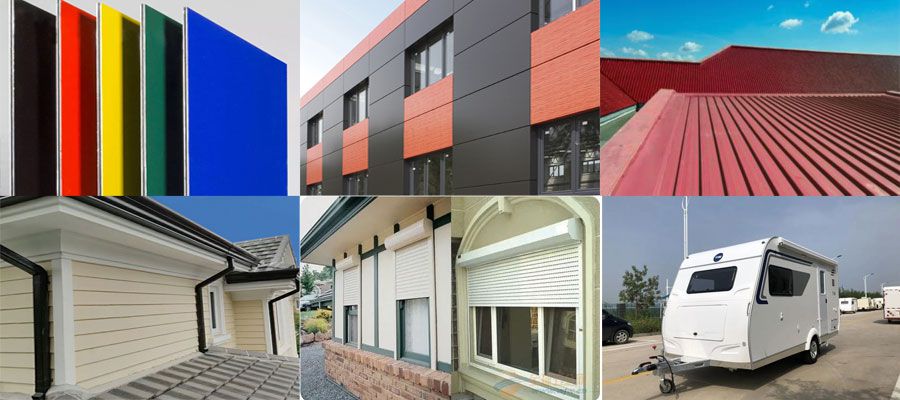

Application of Aluminium Brown Colour:

- Construction: Building facades, roofing, and architectural panels.

- Automotive: Trim and body panels.

- Appliances: Refrigerator and washing machine exteriors.

- Signage: Outdoor signs and displays.

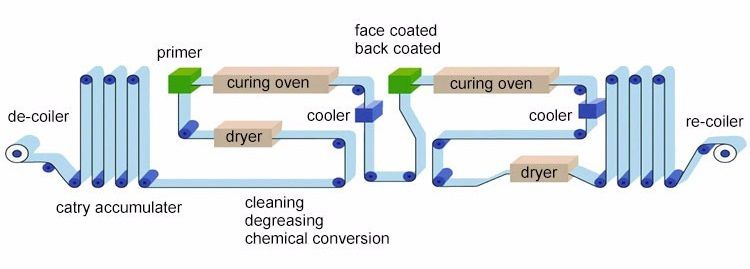

Production Process of Brown Colour Aluminium:

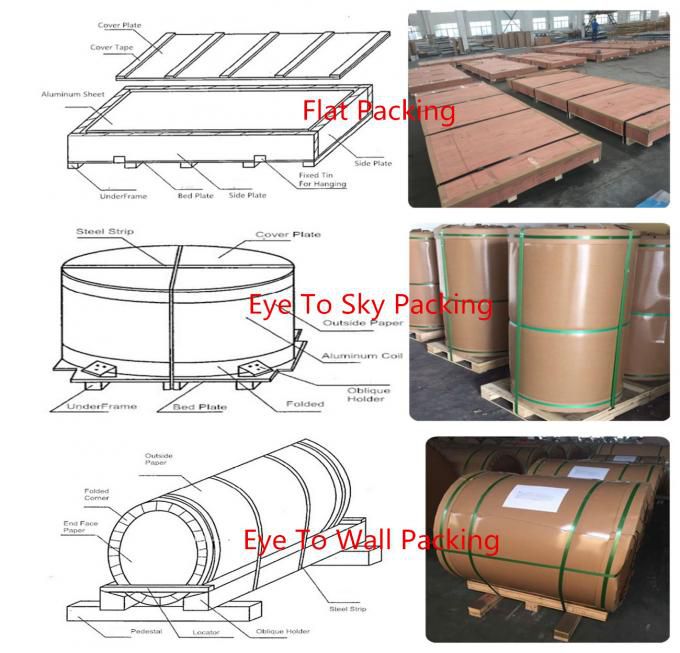

Package of Brown Powder Coated Aluminum:


*
*
