Blue Sheet Metal

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005, 5052

Temper : H14, H16, H24 etc

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

Colors : Blue

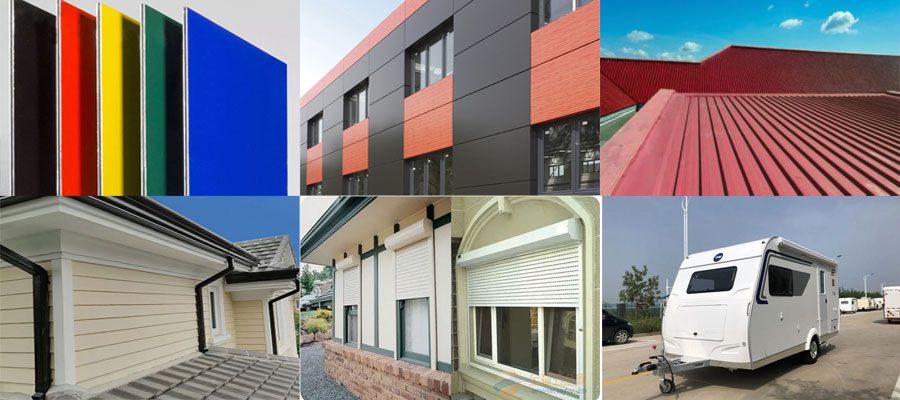

Application : Roofing, composite panel, curtain wall, siding, ceiling, shu

Detailed Description

Blue sheet metal RAL5010 is a color coated aluminum sheet that uses aluminum as the base material and is coated with RAL5010 gentian blue coating.

3003 aluminum alloy is widely used in construction, transportation electronics and other fields due to its high strength, light weight, corrosion resistance and good processing performance. RAL5010 gentian blue, as a classic color, makes the color coated aluminum sheet visually more eye-catching and attractive.

3003 blue metal sheet RAL5010 combines the excellent properties of 3003 aluminum alloy and the bright color of RAL5010 gentian blue, and is suitable for various application scenarios that require high strength, light weight, corrosion resistance and bright blue, such as building decoration materials, transportation manufacturing, etc.

Specification of Blue Sheet Metal:

Aluminum Alloy:	1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.
Thickness:	0.08-5.0mm
Width:	＜2650mm
Coils Core Diameter:	150mm, 405mm, 505mm, 508mm, 510mm
Coating Thickness:	PVDF>=25micron, PE>=18micron
Color Standard:	E < 2 or it is not obvious by eyeballing
Pencil Hardness:	> 2HB
Coating Adhesive:	not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
T Bend:	≤ 2 T
Boiling Point:	no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive:	surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change
