Blue Diamond Plate

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H24

Thickness : 0.08 - 5 mm

Width : 100 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

Colors : RAL or Pantone or Customized

Application : Decoration, wall, door, floor

Detailed Description

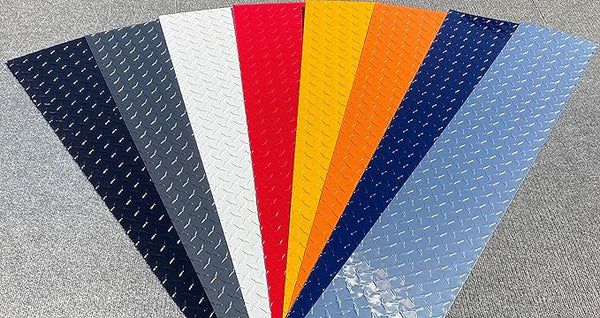

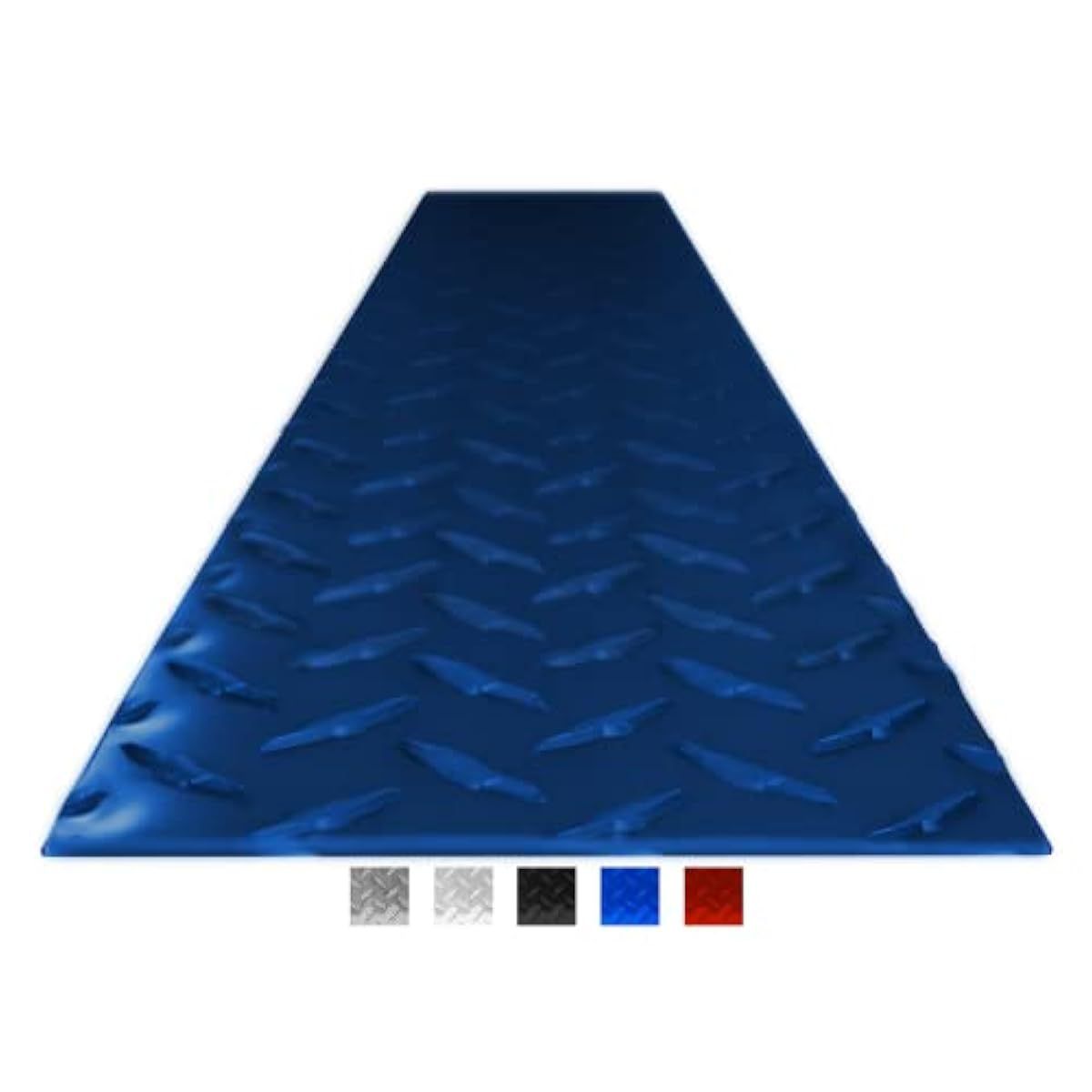

Blue aluminum diamond plate is a type of aluminum sheeting characterized by its diamond-shaped pattern, which provides enhanced traction and durability. This material is often used in various applications due to its lightweight, corrosion-resistant properties, and aesthetic appeal.

Material:

Made from aluminum, which is lightweight and resistant to rust and corrosion.

Pattern:

The diamond pattern provides a non-slip surface, making it ideal for flooring and ramps.

Color:

The blue finish can be achieved through anodizing or powder coating, giving it an attractive appearance while also providing additional protection against wear and tear.

The Specification of Blue Diamond Plate:

Alloy:

Typically made from 1060, 3003, 5052 or 6061 aluminum alloys, which offer a good balance of strength and corrosion resistance.

Thickness:

Ranges from 0.025 inches (0.635 mm) to 0.125 inches (3.175 mm) or more, depending on the application. Thicker plates provide greater strength and durability.

Sheet Size:

Often available in standard sizes such as 4' x 8', 4' x 10', or custom dimensions depending on the supplier and project requirements.

Diamond Pattern:

The raised diamond pattern typically has a height of about 0.1 inches (2.54 mm) and varies in size and spacing depending on the design specifications.

Weight per Square Foot:

The weight of blue aluminum diamond plate can vary based on thickness; for example, a 0.125-inch thick sheet weighs approximately 3.0-3.5 pounds per square foot.
