Black Powder Coated Aluminium

Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005

Temper : H14, H24

Thickness : 0.18 - 1.5 mm

Width : 10 - 2650 mm

Coating : PE, PVDF, HDPE, FEVE

Colors : Black

Application : roofing, curtain wall, ceiling, shutter, gutter, fa

Detailed Description

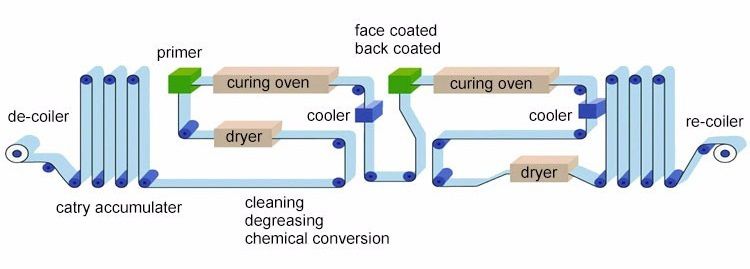

Black powder coated aluminum sheet coil is an aluminum material treated by powder spraying process, which is usually used in many fields such as construction, industry, home appliances, etc. Powder spraying is a surface coating technology that uses powdered paint instead of liquid paint, which has many advantages.

Specification of Black Powder Coated Aluminium:

Alloy

Temper

Thickness

(mm)

Width

(mm)

Coil I.D. (mm)

Coating

Coating Thickness

1100 1050

1060 1070

3003 3004

3005 3105

H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, H44, H46, H48 etc.

0.2-1.2

10-1800

150/300/400/500/505/508

PE/PVDF

One-Coat: 18+/-2um

Two-Coat: 25-28um

Back coat:5-10um

Special specification could be customized.

Features of Black Powder Coated Aluminum:

- Environmentally friendly: The powder coating process has no volatile organic compounds (VOCs) and has little impact on the environment.

- Strong durability: The coating has excellent scratch resistance, corrosion resistance and UV resistance.

- Diverse colors: Powder coating can provide a variety of colors and surface effects to meet different design needs.

- Simple maintenance: The surface is smooth and easy to clean and maintain.

Application of Powder Coated Black Aluminium:

Black powder coated aluminumare widely used in various fields, including but not limited to:

- Architectural decoration: used to make various special-shaped materials, panels, exterior panels and curtain wall panels, etc.

- Automobile manufacturing: used to make automobile body panels, interior panels, door panels, engine hoods and other parts.

- Medical equipment: used as packaging materials for medical instruments and equipment, as well as operating room isolation materials, medical consumables, etc.

- Home appliance manufacturing: used to make the shell and internal materials of household appliances such as televisions, refrigerators, and air conditioners.
