Black Aluminum Coil
Series : 1050, 1060, 1100, 3003, 3004, 3005 3105, 5005, 5052
Temper : H14, H16, H24 etc
Thickness : 0.18 - 1.5 mm
Width : 10 - 2650 mm
Coating : PE, PVDF, HDPE, FEVE
Colors : Black
Application : Roofing, composite panel, curtain wall, siding, ceiling, sh
Black aluminum coil is a kind of aluminum material with surface coating, which is usually used in many fields such as construction, automobiles, and home appliances.
Black coated aluminum coil is made of aluminum alloy, which has good strength and lightweight characteristics. Through spraying, painting or other coating processes, the surface of the aluminum coil appears black, which increases the aesthetics and corrosion resistance. Black coated aluminum coil is available in a variety of thicknesses and widths to meet different application requirements.
Specification of Black Aluminum Coil:
Aluminum Alloy: | 1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc. |
Thickness: | 0.08-5.0mm |
Width: | ＜2650mm |
Coils Core Diameter: | 150mm, 405mm, 505mm, 508mm, 510mm |
Coating Thickness: | PVDF>=25micron, PE>=18micron |
Color Standard: | E < 2 or it is not obvious by eyeballing |
Pencil Hardness: | > 2HB |
Coating Adhesive: | not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993) |
T Bend: | ≤ 2 T |
Boiling Point: | no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
Corrosive: | surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change |
Features of Black Aluminum Roll:
- High Gloss;
- Wide Range Of Color ;
- Good Mechanical Processing Performance;
- Impact And Weather Resistance;
- Easy For Processing And Installation;
- Excellent Torsion Strength.
Application of Black Aluminum Sheet Roll:
- Construction: Commonly used for roofing, wall cladding, and facade systems in both residential and commercial buildings.
- Automotive: Utilized in vehicle interiors, exteriors, and components due to their lightweight and corrosion-resistant properties.
- Appliances: Found in household appliances such as refrigerators, ovens, and washing machines.
- Signage: Ideal for producing vibrant and durable outdoor and indoor signs.
- Furniture: Used in modern furniture designs for tables, cabinets, and shelving.
- Packaging: Employed in packaging applications, particularly in food and beverage industries.

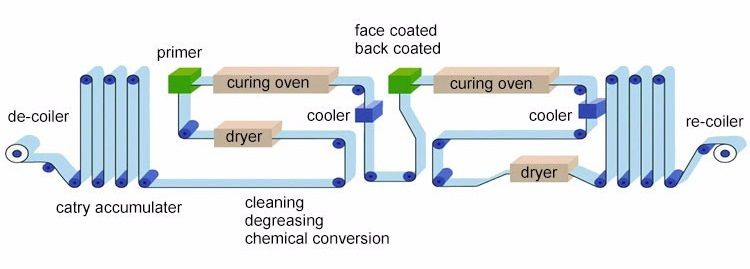

Production Process of Black Aluminum Coil:

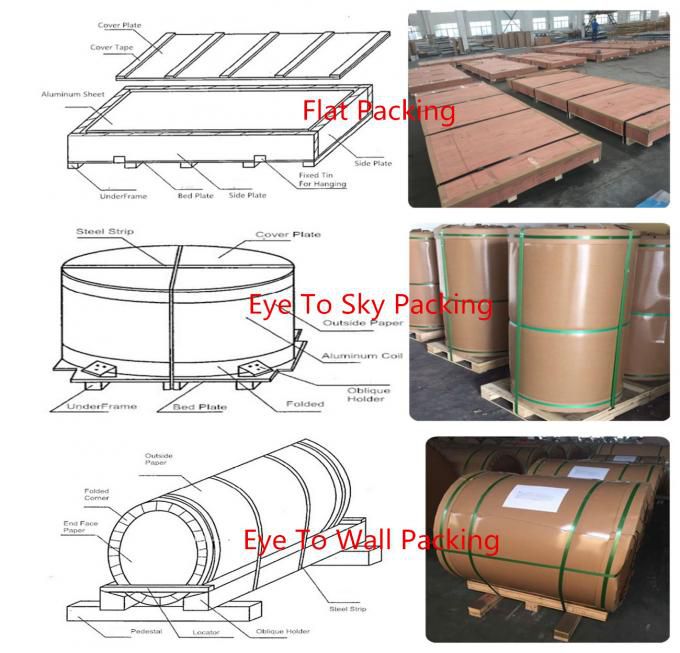

Package of Black Aluminum Roll:
