1050 Prepainted Aluminum Coil

Series : 1050

Temper : H14, H24

Thickness : 0.18 - 1.5 mm

Width : 10-2650 mm

Coating : PE, PVDF, HDPE, FEVE

Colors : RAL or Pantone or Customized

Application : roofing, curtain wall, ceiling, shutter, gutter, facades, channel letter

Detailed Description

A 1050 pre painted aluminum coil would typically be made from aluminum alloy 1050, which is a commercially pure aluminum with high corrosion resistance and excellent workability. The coil would be pre-painted with a specific color or finish according to the customer's requirements.

The Specification of 1050 Prepainted Aluminum Coil:

Aluminum Alloy:	1050 1060 1100 3003 3004 3105 5005 5052 5754 8011 etc.
Thickness:	0.08-5.0mm
Width:	＜2650mm
Coils Core Diameter:	150mm, 405mm, 505mm, 508mm, 510mm
Coating Thickness:	PVDF>=25micron, PE>=18micron
Color Standard:	E < 2 or it is not obvious by eyeballing
Pencil Hardness:	> 2HB
Coating Adhesive:	not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993)
T Bend:	≤ 2 T
Boiling Point:	no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive:	surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change

The Features of 1050 Painted Aluminum Coil:

- High Gloss;
- Wide Range Of Color ;
- Good Mechanical Processing Performance;
- Impact And Weather Resistance;
- Easy For Processing And Installation;
- Excellent Torsion Strength

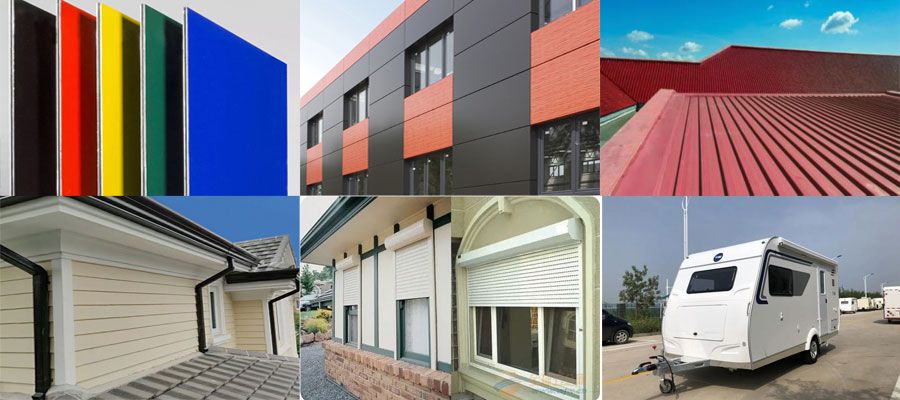

The Application of 1050 Color Coated Aluminum Coil:

Application	Outdoor Applications	curtain wallboard, facades, solar collector, shutter doors, aluminum composite panel, roofing,gutter
	Indoor Applications	wall cladding, ceilings, bathrooms, kitchens and balconies, blinds,shutter doors, aluminum spacer
	Advertisement and Market Applications	display platforms, signboards, fascia and shop fronts,license plate/name plate ,channel letter
	Transportation	truck and container
